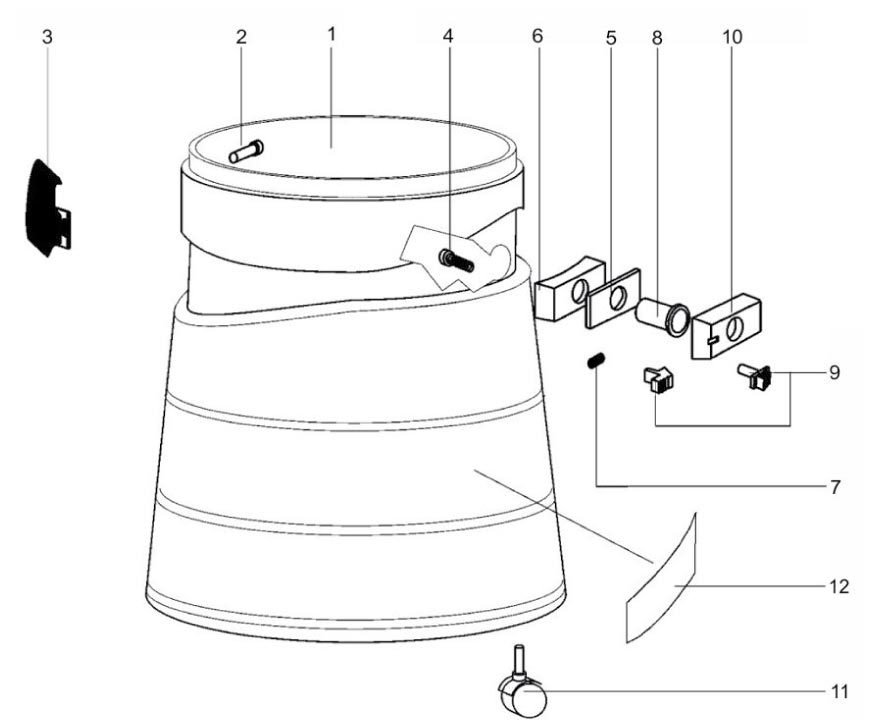

★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★
| Number | Sku | Image | Name |
|---|
| 1 | 86164190 |  |
S82599 - Windsor Titan T708 Tank |
| 2 | 86163800 |  |
S81300 - Rivet, 5 X 24.5 |
| 3 | 86164160 |  |
S81847G6 - Tank Clamp, Windsor Titan T708 and T720TP |
| 4 | 86163880 |  |
S81050 - Screw, 5 X 35 Windsor Titan |
| 5 | 86163190 |  |
S82846 - Windsor Titan Gasket |
| 6 | 86163770 |  |
S82585AG8BL - Tank Adapter Retainer, Windsor Titan T708 |
| 7 | 86164010 |  |
S82608 - Push Button Spring, Windsor Titan T708 |
| 8 | 86164180 |  |
S82593 - Windsor Titan Tank Deflector |
| 9 | 86163710 |  |
S82594BL - 2 Piece Blue Push Button, Windsor Titan |
| 10 | 86163360 |  |
S82583AG6BL - Blue Hose Adapter, Windsor Titan |
| 11 | 86162760 |  |
S80558 - Windsor Titan Caster |
