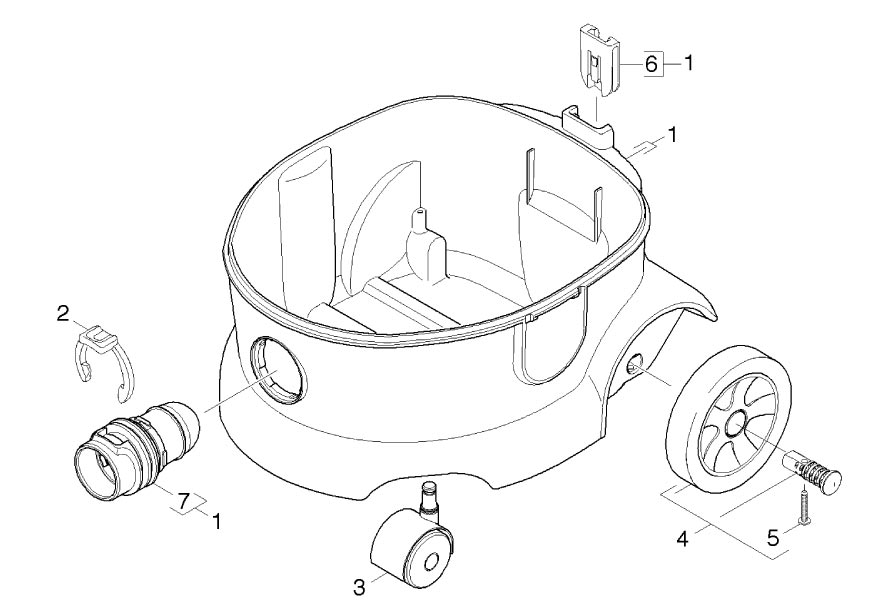

★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★
| Number | Sku | Image | Name |
|---|
| 1 | 40706400 |  |
Blue Tank Complete, TrekVac 3 |
| 2 | 53430220 |  |
Locking Ring, Windsor TrekVac 2 |
| 3 | 64357070 | |
Caster, TrekVac 3 |
| 4 | 45152720 | |
Wheel Complete, TrekVac 3 |
| 5 | 73030860 | |
Screw 5X30 10.9-R2R, Windsor TrekVac 2 |
| 6 | 50326680 | |
Moulded Part, TrekVac 3 |
| 7 | 50325670 | |
Suction T Connection, Windsor TrekVac 2 |
