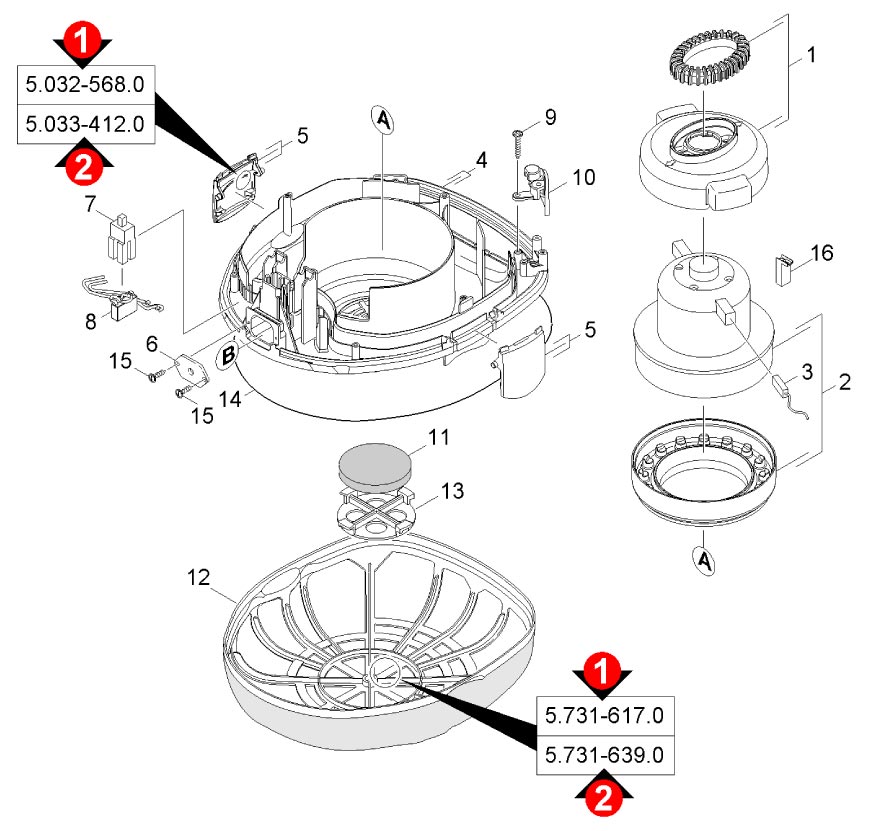

★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★
| Number | Sku | Image | Name |
|---|
| 1 | 46050840 |  |
Housing Complete, TrekVac 2 |
| 2 | 46100710 | |
Vacuum Motor Complete, TrekVac 2 |
| 3 | 66102690 |  |
Carbon Brush Set 100-120V, Windsor TrekVac 2 |
| 4 | 46050700 | |
Housing Complete, TrekVac 3 |
| 5-1 | 50325680 | |
Locking Clip, Windsor TrekVac 2 |
| 5-2 | 50334120 | |
Locking Clip, Windsor TrekVac 2 |
| 6 | 50029230 | |
Cover Plate, TrekVac 3 |
| 7 | 66300320 | |
Switch, TrekVac 3 |
| 8 | 48393580 |  |
Noise Suppressing Capacitor, Windsor TrekVac 2 |
| 9 | 73030840 | |
Screw 4X25 - 10.9-R2R (K-In6Rd) Windsor TrekVac 2 |
| 10 | 50326720 | |
Pull Relief, TrekVac 3 |
| 11 | 64146110 | |
Motor FilterWindsor TrekVac 2 |
| 12 | 57316190 | |
Filtering Basket, TrekVac 3 |
| 13 | 50326740 |  |
Motor Filter Protecting Grate, Windsor TrekVac 2 |
| 14 | 62732400 | |
Seal, TrekVac 3 |
| 15 | 73031230 | |
Countersunk Screw, TrekVac 3 |
| 16 | 64902740 | |
Countersunk Screw, TrekVac 3 |
