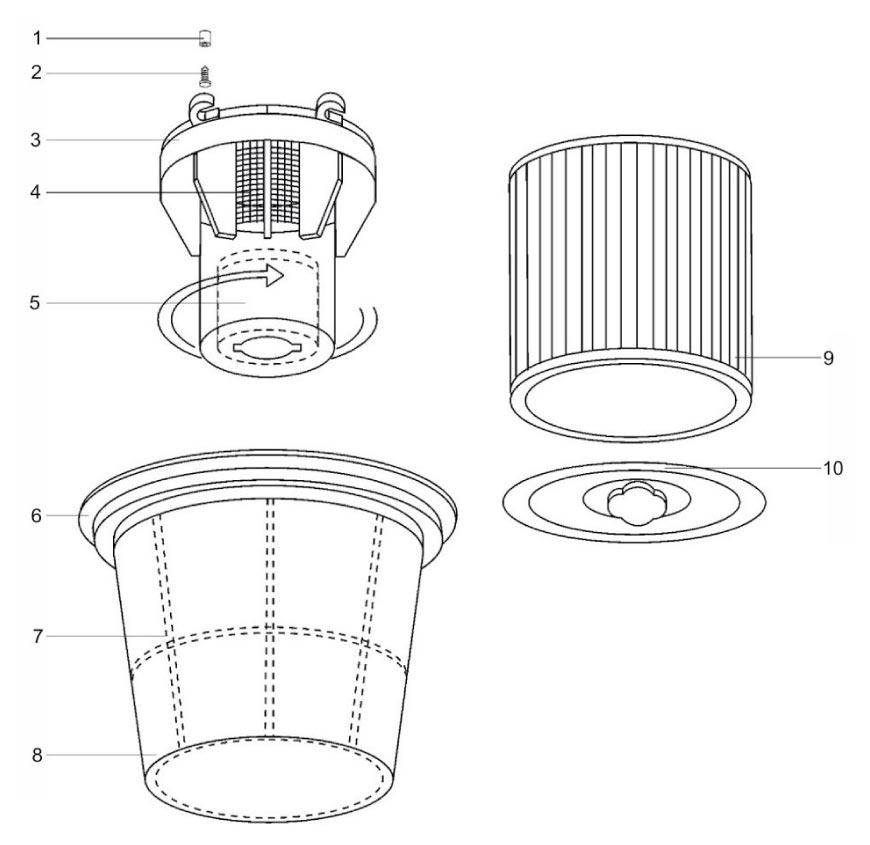

★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★
| Number | Sku | Image | Name |
|---|
| 1 | 86162730 |  |
S83706 - Bushing, Windsor Titan |
| 2 | 86163950 |  |
S83724 - Screw, 5 X 25 |
| 3 | 86162690 |  |
S82823 - Filter Support Body, Windsor Titan |
| 4 | 86164080 |  |
S83117 - Windsor Titan Strainer, T716 and T720TP |
| 5 | 86163150 |  |
S82676 - Windsor Titan Float |
| 6 | 86163010 |  |
S80473 - Filter Ring, Windsor Titan T716 and T720TP |
| 7 | 86163020 |  |
S82845 - Filter Bag, Windsor Titan T716 and T720TP |
| 8 | 86164120 |  |
S82833 - Filter Support, Windsor Titan T716 and T720TP |
| 9 | 86163030 |  |
S82852 - Windsor Titan Filter, T716 and T720TP |
| 10 | 86163040 |  |
S82855 - Filter Retainer, Windsor Titan T716 and T720TP |
