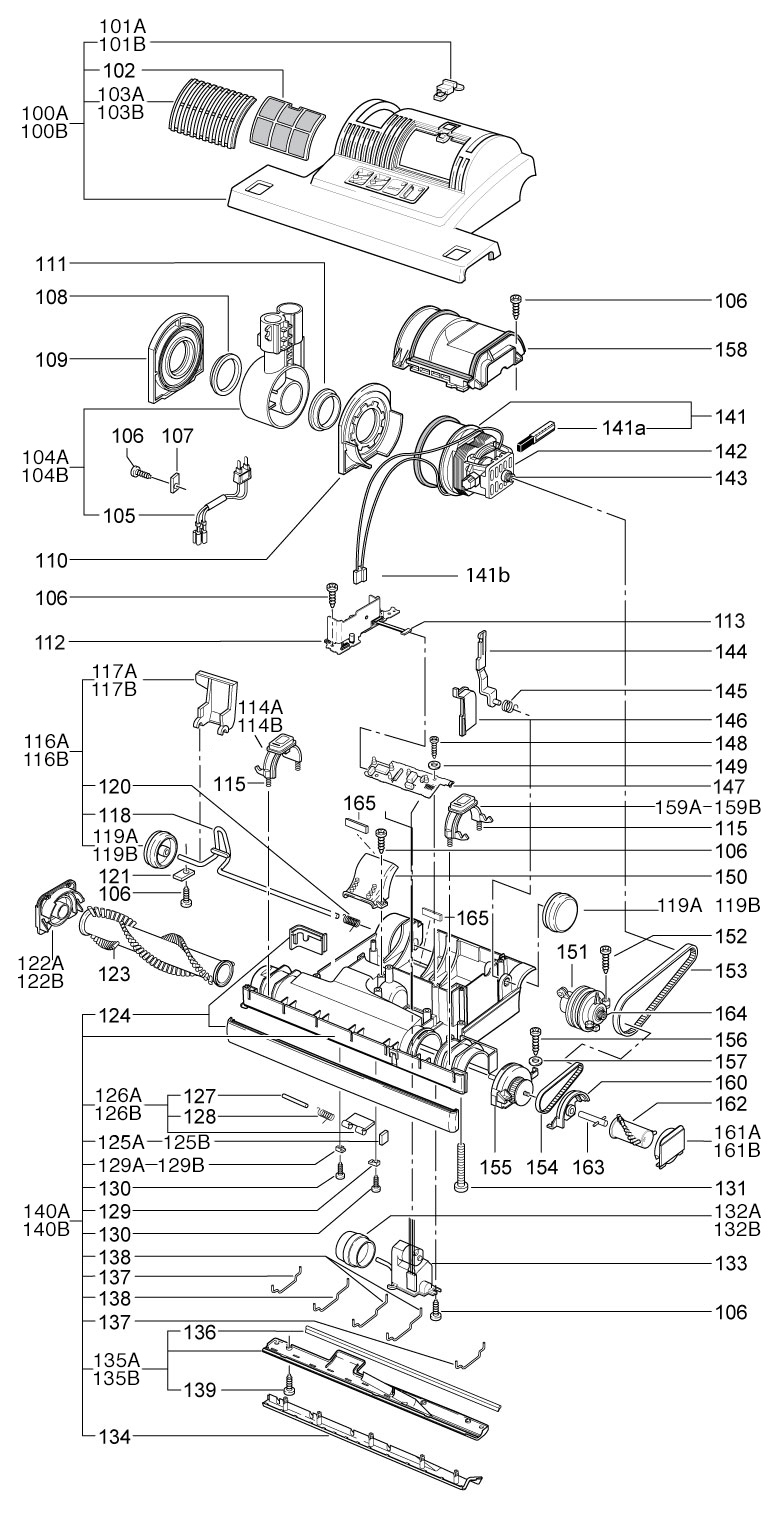

Windsor Sensor XP 18" Power Head

Power Head Cover XP18 #86406290 Power Head Cover XP18 #86144360 Gray Exhaust Filter Catch #86406070 Exhaust Filter Catch Windsor Sensor XP12 #86141430 Exhaust Filter Windsor Sensor XP & SR- 86141450 Basalt Gray Exhaust Filter Cover #86406080 Exhaust Filter Cover, Sensor S & XP, Blue 86141410 Light Gray/Zinc Yellow Swivel Neck Assembly 86406090 Swivel Neck Assembly #86146140 Male Contact Holder #86143200 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Sensor Cable Clamp 86139230 Windsor Sensor Swivel Neck Sleeve #86145120 Swivel Neck Support, RH, XP15 & XP18 #86146090 Swivel Neck Support L.H. #86146150 Sensor Left Hand Swivel Neck Bearing 86146130 PCB Kit for X & XP series Ribbon Cable #86144650 Karcher Gray Brush Roller Release #86406100 Brush Roller Release #86138650 Sensor Spring for Brush Roller Release 86145290 Sensor Zinc Yellow Axle Assembly 86406110 Axle Assembly #86137980 Sensor Zinc Yellow Foot Pedal 86406120 Foot Pedal 86293260 Sensor Axle 86137990 Sensor Spring for Brush Roller Release 86145290 Sensor Wheel, Black 86319360 Sensor Wheel, Black 86319360 Sensor Wheel, Gray #86146670 Sensor Wheel, Gray #86146670 Windsor Sensor Spring Axle Return 86146570 Sensor Clamp Connecting Rod 86140000 Sensor Black Bearing Block Right Hand 86406130 Bearing Block Right Hand #86138170 Brush Roller Set XP18 #86138770 Black Bumper 18inch 86406300 Rubbing Plate #86144730 Sensor Gray Black Rubbing Plate 86406140 Zinc Yellow Access Door #86406150 Access Door Orange (complete). #86137720 Sensor Axle Access Door 86138000 Spring, Access Door 86145330 Hinge #86142550 Hinge 86406160 Hinge 86406160 Screw 2.9 X 9.5 86147150 Screw 2.9 X 9.5 86147150 Screw M4 X 30 86147170 Sensor Black Pile Adjustment Wheel 86319380 Sensor Pile Adjustment Wheel 86143920 Servo Motor w/ Gear Box #86145080 Gray Black Front Bottom Plate Complete 86406310 Gray Black Rear Bottom Plate Complete 86406320 Rear Bottom Plate #86144540 18" Sealing Strip #86144960 Sensor Wire Tie 86146790 Sensor Wire Tie 86146790 Sensor Wire Tie Center 86146800 Sensor Wire Tie Center 86146800 Screw M4X12 MM W/Washer 86144850 Black Chassis Complete 86406330 Chassis Complete #86139910 Carbon Brush Set Vacuum Motor 86139400 Sensor Motor 1000W 120V 86143630 Rubber Motor Mounting 86144710 Sensor Motor Pulley 86143620 Support Lever 86145470 Support Lever Spring 86145460 Motor Pulley Cover 86143570 PCB Kit #5850ER Screw 2.9 X 13 86147160 Windsor WASHER 3.2 86147190 Cover (Swivel Neck) Air Channel #86140760 Sensor (With Red Ring) #86145060 Screw M3.9 X 25 MM 86147050 Belt 2MR-310-6 86138240 Belt 219 3M HTDII-6 86005000 Bearing Block L.H. #86138210 Screw C 3,9 x 16 DIN 7981 86147040 Locking Washer, Windsor Sensor and Versamatic 86146550 Motor Cover #86143560 Karcher Gray Brush Roller Release 86408850 Brush Roller Release XP15 & XP18 #86138690 Seal Bearing #86144920 Basalt Gray/Black Brush Cover 86406270 Brush Cover #86138780 Brush Roller Set XP18 #86138770 Shaft Extention #86145110 Sensor Motor Pulley 86143580 Swivel Neck Felt Strip #86348780 Swivel Neck Felt Strip #86348780 Sensor Thermo Switch
Windsor Sensor XP
Bag Housing
Windsor Sensor XP
12" Power Head
Windsor Sensor XP
15" Power Head

Parts List

Number Sku Image Name
86348780 Swivel Neck Felt Strip #86348780 Swivel Neck Felt Strip $42.75
100a 86406290 5487BG - Basalt Gray XP18 Power Head Cover XP18 Power Head Cover, Gray $91.80
100b 86406290 XP 18 Power Head Cover #86144360 Power Head Cover XP18, Blue $92.50
101a 86406070 Gray Exhaust Filter Catch #86406070 Gray Exhaust Filter Catch #86406070 $6.65
101b 86141430 Exhaust Filter Catch Windsor Sensor XP12 #86141430 Exhaust Filter Catch Windsor Sensor XP12 $5.30
102 86141450 5143 - Exhaust Filter Windsor Sensor XP & SR 5143 - Exhaust Filter Windsor Sensor XP & SR $6.75
103a 86406080 Basalt Gray Exhaust Filter Cover #86406080 Exhaust Filter Cover, Gray $14.00
103b 86406080 Exhaust Filter Cover, Sensor S & XP, Blue 86141410 Exhaust Filter Cover, Blue $11.00
104a 86406090 Light Gray/Yellow Swivel Neck Assembly 86406090 Swivel Neck Assembly, Yellow $45.40
104b 86146140 Swivel Neck Assembly, Gray/Orange #86146140 Swivel Neck Assembly, Orange $44.50
105 86143200 Male Contact Holder #86143200 5258 UL - Male Contact Holder $20.00
106 86147030 0102 - Screw F 3,9 x 13 DIN 7981 Screw F 3,9 x 13 DIN 7981 $1.05
107 86139230 Cable Clamp 86139230 Cable Clamp 86139230 $1.99
108 86145120 Windsor Sensor Swivel Neck Sleeve 86145120 Swivel Neck Sleeve $9.55
109 86146090 5178 Swivel Neck Support, RH, XP15 & XP18 Swivel Neck Support, RH, XP15 & XP18 $23.50
110 86146150 Swivel Neck Support L.H. #86146150 Swivel Neck Support, Left Hand $23.00
111 86146130 Swivel Neck Bearing, Left Hand 86146130 Swivel Neck Bearing, Left Hand $6.95
112 5850ER PCB Kit for S & XP series 5850ER PCB Kit $92.91
113 86144650 Ribbon Cable 86144650 Ribbon Cable $20.50
114a 86406100 Brush Roller Release, Gray 86406100 Brush Roller Release, Gray $14.50
114b 86138650 Brush Roller Release, Blue 86138650 Brush Roller Release, Blue $13.50
115 86145290 5103 - Spring Spring for Brush Roller Release $1.79
116a 86406110 Axle Assembly, Yellow 86406110 Axle Assembly, Yellow $57.10
116b 86137980 Axle Assembly, Orange 86137980 Axle Assembly, Orange $85.50
117a 86406120 Foot Pedal, Yellow 86406120 Foot Pedal, Yellow $13.00
117b 86293260 Foot Pedal, Orange 86293260 Foot Pedal, Orange $7.15
118 86137990 Sensor Axle 86137990 Sensor Axle $26.00
119a 86319360 Sensor Wheel, Black 86319360 Sensor Wheel, Black 86319360 $31.50
119b 86146670 Sensor Wheel, Gray #86146670 Sensor Wheel, Gray $23.00
120 86146570 Windsor Sensor Spring Axle Return 86146570 Spring Axle Return $2.55
121 86140000 Clamp Connecting Rod 86140000 Clamp Connecting Rod $2.55
122a 86406130 Bearing Block, Right Hand, Black 86406130 Bearing Block, Right Hand, Black/Gray 86406130 $21.00
122b 86138170 Bearing Block, Right Hand, Blue/Gray 86138170 Bearing Block, Right Hand, Blue/Gray 86138170 $24.00
123 86138770 Brush Roller Set XP18 86138770 Brush Roller Set XP18 $53.00
124 86406300 Black Bumper 18 inch 86406300 Black Bumper 18 inch $29.05
125a 86406140 5155sw - Black Rubbing Plate Rubbing Plate, Gray/Black $4.15
125b 86406140 Rubbing Plate, Light Gray 86144730 Rubbing Plate, Light Gray 86144730 $1.99
126a 86406150 Access Door, Yellow 86406150 Access Door, Yellow $11.50
126b 86137720 Access Door, Orange 86137720 Access Door, Orange $13.50
127 86138000 Sensor Axle Access Door 86138000 Axle Access Door $1.49
128 86145330 Spring, Access Door 86145330 Spring, Access Door $3.60
129a 86406160 Hinge, Black 86406160 Hinge, Black $4.85
129b 86142560 5154sw - Black Hinge Hinge, Gray $1.49
130 86147150 Screw 2.9 X 9.5 86147150 Screw 2.9 X 9.5 $1.99
131 86147170 0176 - Screw M4 X 30 Screw M4 X 30 $1.99
132a 86319380 Pile Adjustment Wheel, Black 86319380 Pile Adjustment Wheel, Black $30.00
132b 86143920 Pile Adjustment Wheel, Gray 86143920 Pile Adjustment Wheel, Gray $24.50
133 86145080 Servo Motor w/ Gear Box 86145080 Servo Motor w/ Gear Box $94.00
134 86406310 Front Bottom Plate Complete, Gray Black 86406310 Front Bottom Plate Complete, Gray Black $26.50
135a 86406320 Rear Bottom Plate Complete, Gray Black 86406320 Rear Bottom Plate Complete, Gray Black $31.50
135b 86144540 Rear Bottom Plate Complete, Light Gray 86144540 Rear Bottom Plate Complete, Light Gray $29.00
136 86144960 18 Inch Sealing Strip #86144960 Sealing Strip, 18 Inch $7.30
137 86146790 Sensor Wire Tie 86146790 Wire Tie $4.55
138 86146800 Wire Tie Center 86146800 Wire Tie Center $4.55
139 86144850 Screw M4X12 MM W/Washer 86144850 Screw M4X12 MM W/Washer $1.79
140a 86406330 Black Chassis Complete 86406330 Chassis Complete, Black $54.55
140b 86406330 Chassis Complete, Gray 86139910 Chassis Complete, Gray $160.00
141 86143630 Motor 1000W 120V 86143630 Motor 1000W 120V $210.00
141a 86139400 Carbon Brush Set Vacuum Motor 86139400 Carbon Brush Set Vacuum Motor $41.50
141b 86146210 Sensor Thermo Switch 86146210 Thermo Switch $44.00
142 86144710 Rubber Motor Mounting 86144710 Rubber Motor Mounting $15.50
143 86143620 Sensor Motor Pulley 86143620 Sensor Motor Pulley $8.95
144 86145470 Support Lever 86145470 Support Lever $20.50
145 86145460 Support Lever Spring 86145460 Support Lever Spring $1.99
146 86143570 Motor Pulley Cover 86143570 Motor Pulley Cover $8.45
147 5850ER PCB Kit for X & XP series 5850ER PCB Kit $92.91
148 86147160 Screw 2.9 X 13 86147160 Screw 2.9 X 13 $1.49
149 86147190 Windsor Washer 3.2 86147190 Windsor Washer 3.2 $1.49
150 86140760 Cover (Swivel Neck) Air Channel 86140760 Cover (Swivel Neck) Air Channel $9.85
151 86145060 Sensor (With Red Ring) 86145060 Sensor (With Red Ring) $88.50
152 86147050 Screw M3.9 X 25 MM 86147050 Screw M3.9 X 25 MM $1.99
153 86138240 5463 - Belt 2MR-310-6 Belt 2MR-310-6 $21.50
154 86005000 Belt 219 3M HTDII-6 86005000 Belt 219 3M HTDII-6 $19.50
155 86138210 Bearing Block Left Hand 86138210 Bearing Block, Left Hand $66.00
156 86147040 0103- Screw C 3,9 x 16 DIN 7981 Screw C 3,9 x 16 DIN 7981 $1.99
157 86146550 Locking Washer 86146550 Locking Washer $1.99
158 86143560 Motor Cover #86143560 Motor Cover $29.00
159a 86408850 Brush Roller Release, Gray 86408850 Brush Roller Release, Gray $16.00
159b 86408850 Brush Roller Release, Blue 86138690 Brush Roller Release, Blue $14.00
160 86144920 5244 HG - Seal Bearing Seal Bearing $21.00
161a 86406270 Brush Cover, Gray/Black 86406270 Brush Cover, Gray/Black $17.50
161b 86138780 Brush Cover, Blue/Gray 86138780 Brush Cover, Blue/Gray $26.00
162 86138770 Brush Roller Set XP18 86138770 Brush Roller Set $53.00
163 86145110 Shaft Extention 86145110 Shaft Extention $23.00
164 86143580 Sensor Motor Pulley 86143580 Sensor Motor Pulley $12.50
165 86348780 Swivel Neck Felt Strip #86348780 Sensor Motor Pulley $42.75
