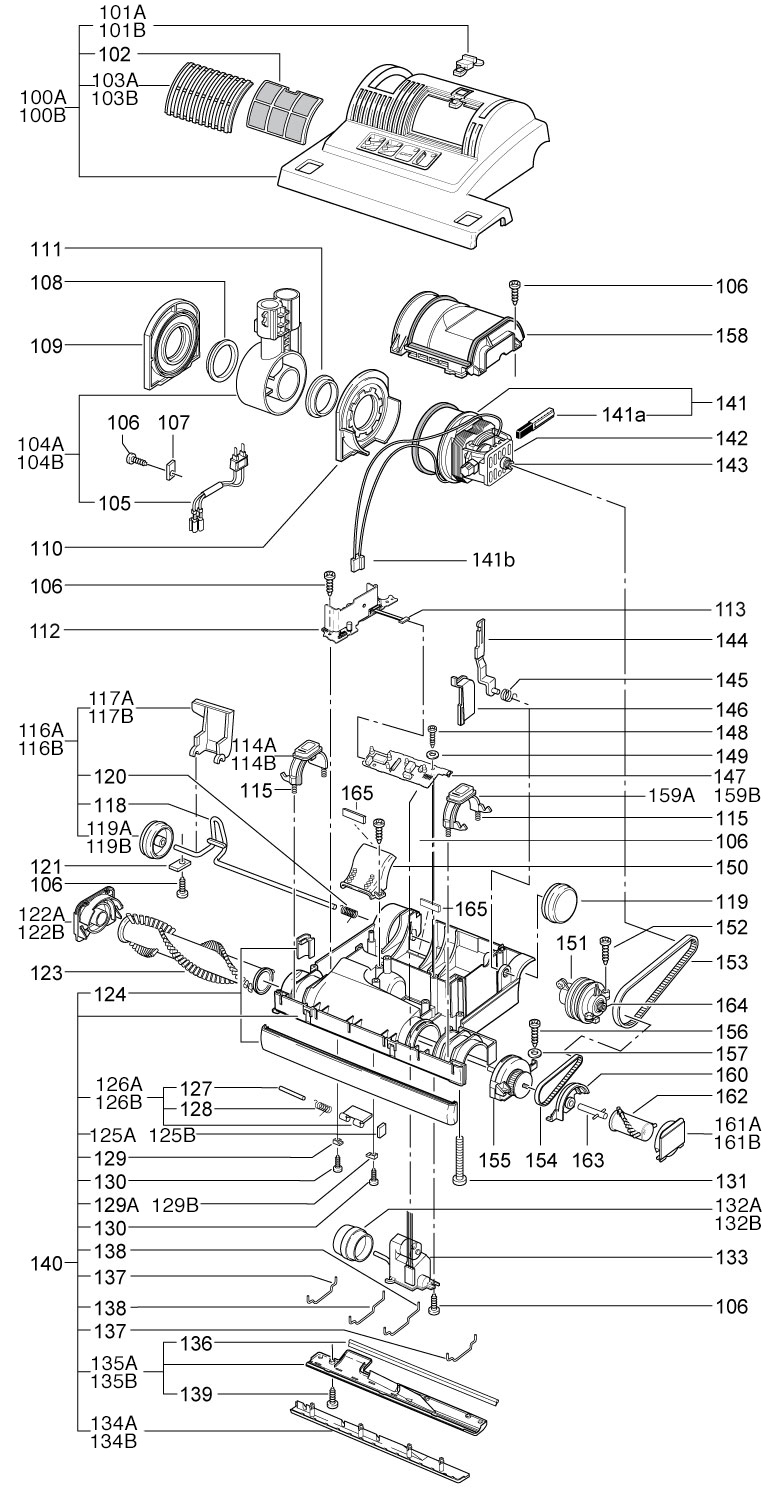

★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★

Windsor Sensor XP 15" Power Head

Swivel Neck Felt Strip #86348780 Swivel Neck Felt Strip #86348780 Power Head Cover XP15 #86406220 Power Head Cover XP15 #86144350 Gray Exhaust Filter Catch #86406070 Exhaust Filter Catch Windsor Sensor XP12 #86141430 Exhaust Filter Windsor Sensor XP & SR- 86141450 Basalt Gray Exhaust Filter Cover #86406080 Exhaust Filter Cover, Sensor S & XP, Blue 86141410 Light Gray/Zinc Yellow Swivel Neck Assembly 86406090 Swivel Neck Assembly #86146140 Male Contact Holder #86143200 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Sensor Cable Clamp 86139230 Windsor Sensor Swivel Neck Sleeve #86145120 Swivel Neck Support, RH, XP15 & XP18 #86146090 Swivel Neck Support L.H. #86146150 Sensor Left Hand Swivel Neck Bearing 86146130 PCB Kit for X & XP series 5850ER Ribbon Cable #86144650 Karcher Gray Brush Roller Release #86406100 Brush Roller Release #86138650 Sensor Spring for Brush Roller Release 86145290 Sensor Spring for Brush Roller Release 86145290 Sensor Zinc Yellow Foot Pedal 86406120 Foot Pedal 86293260 Sensor Zinc Yellow Axle Assembly 86406110 Axle Assembly #86137980 Sensor Axle 86137990 Sensor Wheel, Black 86319360 Sensor Wheel, Gray #86146670 Windsor Sensor Spring Axle Return 86146570 Sensor Clamp Connecting Rod 86140000 Sensor Black Bearing Block Right Hand 86406130 Bearing Block Right Hand #86138170 Brush Roller Set XP & SR #86138810 Bumper XP15 #86138970 Sensor Gray Black Rubbing Plate 86406140 Rubbing Plate #86144730 Zinc Yellow Access Door #86406150 Access Door Orange (complete). #86137720 Sensor Axle Access Door 86138000 Spring, Access Door 86145330 Hinge 86406160 Hinge 86406160 Hinge #86142550 Screw 2.9 X 9.5 86147150 Screw 2.9 X 9.5 86147150 Screw M4 X 30 86147170 Sensor Black Pile Adjustment Wheel 86319380 Sensor Pile Adjustment Wheel 86143920 Servo Motor w/ Gear Box #86145080 Gray Black Front Bottom Plate Complete 86406230 Front Bottom Plate Sensor #86138320 S15 Rear Bottom Plate cpl., Dark Gray #86406240 Rear Bottom Plate #86138340 15" Sealing Strip #86144950 Sensor Wire Tie 86146790 Sensor Wire Tie 86146790 Sensor Wire Tie Center 86146800 Sensor Wire Tie Center 86146800 Screw M4X12 MM W/Washer 86144850 Sensor XP 15 Chassis Complete 86406250 Rubber Motor Mounting 86144710 Sensor Motor Pulley 86143620 Support Lever 86145470 Support Lever Spring 86145460 Motor Pulley Cover 86143570 PCB Kit for X & XP series 5850ER Screw 2.9 X 13 86147160 Windsor WASHER 3.2 86147190 Cover (Swivel Neck) Air Channel #86140760 Sensor (With Red Ring) #86145060 Screw M3.9 X 25 MM 86147050 Belt 2MR-310-6 86138240 Belt 219 3M HTDII-6 86005000 Bearing Block L.H. #86138210 Screw C 3,9 x 16 DIN 7981 86147040 Locking Washer, Windsor Sensor and Versamatic 86146550 Motor Cover #86143560 Karcher Gray Brush Roller Release 86408850 Brush Roller Release XP15 & XP18 #86138690 Seal Bearing #86144920 Basalt Gray/Black Brush Cover 86406270 Brush Cover #86138780 Brush Roller Set XP & SR #86138810 Shaft Extention #86145110 Sensor Motor Pulley 86143580 Sensor Wheel, Black 86319360 Sensor Wheel, Gray #86146670 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Motor 1000W 120V Carbon Brush Set Vacuum Motor Thermo Switch
Windsor Sensor XP
Bag Housing
Windsor Sensor XP
12" Power Head
Windsor Sensor XP
18" Power Head

Parts List

Number Sku Image Name Price
100a 86406220 Power Head Cover XP15 86406220 Power Head Cover XP15, Gray $100.00
100b 86144350 Power Head Cover XP15 86406220 Power Head Cover XP15, Blue $95.00
101a 86406070 Exhaust Filter Catch, Gray 86406070 Exhaust Filter Catch, Gray $6.65
101b 86141430 Exhaust Filter Catch, Blue 86141430 Exhaust Filter Catch, Blue $5.30
102 86141450 Exhaust Filter 86141450 Exhaust Filter $6.75
103 86406080 Exhaust Filter Cover, Gray 86406080 Exhaust Filter Cover, Gray $14.00
103 86406080 Exhaust Filter Cover, Blue 86141410 Exhaust Filter Cover, Blue $11.00
104a 86406090 5727WI - Light Gray/Zinc Yellow Swivel Neck Assembly Swivel Neck Assembly, Yellow $45.40
104b 86146140 Swivel Neck Assembly, Orange 86146140 Swivel Neck Assembly, Orange $44.50
105 86143200 5258 UL - Male Contact Holder Male Contact Holder $20.00
106 86147030 0102 - Screw F 3,9 x 13 DIN 7981 Screw F 3,9 x 13 DIN 7981 $1.05
107 86139230 Sensor Cable Clamp 86139230 Cable Clamp $1.99
108 86145120 Swivel Neck Sleeve 86145120 Swivel Neck Sleeve $9.55
109 86146090 Swivel Neck Support, Right Hand 86146090 Swivel Neck Support, Right Hand $23.50
110 86146150 5728 Swivel Neck Support L.H. Swivel Neck Support, Left Hand $23.00
111 86146130 5717 - Swivel Neck Bearing L. H. Swivel Neck Bearing, Left Hand $6.95
112 5850ER PCB Kit 5850ER PCB Kit $92.91
113 86144650 Ribbon Cable 86144650 Ribbon Cable 86144650 $20.50
114a 86406100 Brush Roller Release, Gray 86406100 Brush Roller Release, Gray $14.50
114b 86138650 Brush Roller Release, Blue 86138650 Brush Roller Release, Blue $13.50
115 86145290 Spring for Brush Roller Release 86145290 Spring for Brush Roller Release $1.79
116a 86406110 Yellow Axle Assembly 86406110 Axle Assembly, Yellow $57.10
116b 86137980 Axle Assembly, Orange 86137980 Axle Assembly, Orange $85.50
117a 86406120 Foot Pedal, Yellow 86406120 Foot Pedal, Yellow $13.00
117b 86293260 Foot Pedal, Orange 86293260 Foot Pedal, Orange $7.15
118 86137990 Sensor Axle 86137990 Sensor Axle $26.00
119a 86319360 Wheel, Black 86319360 Wheel, Black $31.50
119b 86146670 Wheel, Gray 86146670 Wheel, Gray $23.00
120 86146570 Axle Return Spring 86146570 Axle Return Spring $2.55
121 86140000 Clamp Connecting Rod 86140000 Clamp Connecting Rod $1.45
122a 86406130 Basalt Gray/Black Right Hand Bearing Block Bearing Block, Right Hand, Black $21.00
122b 86406130 Bearing Block, Right Hand, Gray/Blue 86406130 Bearing Block, Right Hand, Gray/Blue $24.00
123 86138810 Brush Roller Set 86138810 Brush Roller Set $46.50
124 86138970 Bumper Set 86138970 Bumper Set $23.50
125a 86406140 Rubbing Plate, Dark Gray 86406140 Rubbing Plate, Dark Gray $4.15
125b 86144730 Rubbing Plate, Light Gray 86144730 Rubbing Plate, Light Gray $1.99
126a 86406150 Yellow Access Door 86406150 Access Door, Yellow $11.50
126b 86406150 Access Door, Orange 86137720 Access Door, Orange 86137720 $13.50
127 86138000 Axle Access Door 86138000 Axle, Access Door $1.49
128 86145330 5304 - Spring, Access Door Spring, Access Door $3.60
129a 86406160 Hinge, Black 86406160 Hinge, Black $4.85
129b 86142550 Hinge, Gray 86142550 Hinge, Gray $1.49
130 86147150 Screw 2.9 X 9.5 86147150 Screw 2.9 X 9.5 $1.99
131 86147170 Screw M4 X 30 86147170 Screw M4 X 30 $1.99
132a 86319380 5174sw - Black Pile Adjustment Wheel Pile Adjustment Wheel, Black $30.00
132b 86319380 Pile Adjustment Wheel, Gray 86143920 Pile Adjustment Wheel, Gray $24.50
133 86145080 Servo Motor w/ Gear Box 86145080 Servo Motor w/ Gear Box 86145080 $94.00
134a 86406230 Black Front Bottom Plate Dark Gray 86406230 Black Front Bottom Plate Dark Gray 86406230 $27.50
134b 86138320 5413gs - Gray Black Front Bottom Plate Complete Front Bottom Plate Sensor 86138320 $25.50
135a 86406240 S15 Rear Bottom Plate cpl., Dark Gray 86406240 Rear Bottom Plate cpl., Dark Gray 86406240 $31.50
135b 86406240 5414gs - Gray Black Rear Bottom Plate Complete Rear Bottom Plate cpl., Gray 86406240 $36.50
136 86144950 5401 - Wire Tie 15 inch Sealing Strip, 86144950 $6.05
137 86146790 5401 - Wire Tie Wire Tie $4.55
138 86146800 5402 - Wire Tie Center Wire Tie Center $4.55
139 86144850 Screw M4X12 MM W/Washer 86144850 Screw M4X12 MM W/Washer $1.79
140 86406250 Sensor XP 15 Chassis Complete 86406250 Sensor XP 15 Chassis Complete $125.00
141 86139400 Sensor Motor 1000W 120V 86143630 Sensor Motor 1000W 120V $210.00
141a 86139400 05117S - Carbon Brush Set Vacuum Motor Carbon Brush Set Vacuum Motor $41.50
141b 86139400 Sensor Thermo Switch 86146210 Sensor Thermo Switch $44.00
142 86144710 Rubber Motor Mounting 86144710 Rubber Motor Mounting $15.50
143 86143620 5462 - Motor Pulley SENSOR Motor Pulley $8.95
144 86145470 Support Lever 86145470 Support Lever $20.50
145 86145460 Support Lever Spring 86145460 Support Lever Spring $1.99
146 86143570 5112 SW - Motor Pulley Cover Motor Pulley Cover $8.45
147 5850ER PCB Kit for X & XP series 5850ER PCB Kit $92.91
148 86147160 Screw 2.9 X 13 86147160 Screw 2.9 X 13 $1.49
149 86147190 Windsor Washer 3.2 86147190 Washer 3.2 $1.49
150 86140760 Cover (Swivel Neck) Air Channel 86140760 Cover (Swivel Neck) Air Channel $9.85
151 86145060 5465 - Sensor (With Red Ring) Sensor (With Red Ring) $88.50
152 86147050 0104 - Screw, M3.9 X 25 MM Screw M3.9 X 25 MM $1.99
153 86138240 Belt 2MR-310-6 86138240 Belt 2MR-310-6 $21.50
154 86005000 Belt 219 3M HTDII-6 86005000 Belt 219 3M HTDII-6 $19.50
155 86138210 Bearing Block Left Hand #86138210 Bearing Block, Left Hand $66.00
156 86147040 0103- Screw C 3,9 x 16 DIN 7981 Screw C 3,9 x 16 DIN 7981 $1.99
157 86146550 Locking Washer, Windsor Sensor and Versamatic 86146550 Locking Washer $1.99
158 86143560 Motor Cover #86143560 Motor Cover $29.00
159a 86408850 Karcher Gray Brush Roller Release 86408850 Brush Roller Release, Gray $16.00
159b 86138690 Brush Roller Release, Blue 86138690 Brush Roller Release, Blue 86138690 $14.00
160 86144920 Seal Bearing 86144920 Seal Bearing $21.00
161a 86406270 Gray/Black Brush Cover 86406270 Brush Cover, Gray/Black $17.50
161b 86138780 Brush Cover, Gray/Blue 86138780 Brush Cover, Gray/Blue $26.00
162 86138810 Brush Roller Set 86138810 Brush Roller Set $46.50
163 86145110 Shaft Extention 86145110 Shaft Extention $23.00
164 86143580 Motor Pulley 86143580 Motor Pulley $12.50
165 86143580 Swivel Neck Felt Strip 86348780 Swivel Neck Felt Strip 86348780 $42.75
