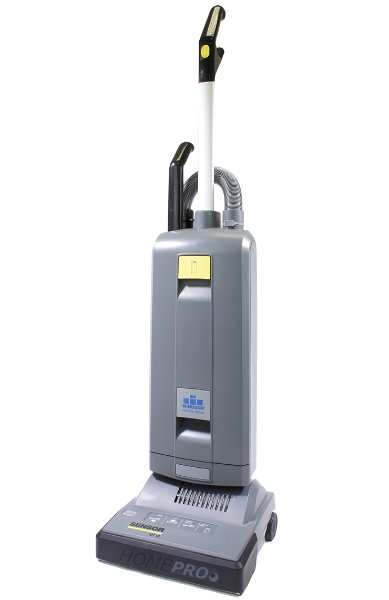

Windsor Sensor XP 12 Upright Vacuums

The smartest vacuum cleaner on the planet. It adjusts automatically to match the exact height requirement of any flooring surface!

Versatility, Performance, Filtration, Durability, and Value
  1. Electronic Automatic Height control.
  2. Bigger, 1200 watt motor pulls even more dirt from the carpet.
  3. Light handle weight (1.5 lbs!) ensures operator comfort and productivity.
  4. Versatile on-board tools and extension wand make Sensor XP12 the perfect choice for detail cleaning.
  5. Easy-to-change filter bag, ensures the bag is installed correctly.
  6. Vacuum will shut-off to self protect in case of clog or jammed brush roller.
  7. Low profile, flat-to-the-floor design allows user to easily clean under beds and furniture.

Technical Specifications:

Model Number: XP12 (1.012-024.0)

  • Vacuum Motor: High-performance, 2-stage, 1.6 hp, (1200 watts), 90" (228 cm) waterlift, 105 cfm (50 liters/sec.) airflow
  • Housing: Durable, High-impact ABS plastic
  • Brush Drive: Non-slip geared belt, with enclosed, electronic safety clutch and speed control
  • Brush Speed: 5400 brush contacts per minute at 2700 rpm
  • Dust Bag: Triple layer bag with 323 in (5.3 ltr.), enclosed, top-loading
  • Filtration: 99.6% at 0.3 microns, 76 in (490 cm2) filtration area
  • Wheels: 2.5" (6.4 cm) diameter rubberized
  • Cable: 40' (12 m) 18/3 SJT, double-insulated
  • Electrical: Operates on 120 volts, 60 cycle 230 volts, (50 Hz models are available in some markets)
  • Working Width: 12" (30 cm)
  • Height: 46" (117 cm)
  • Handle Weight: 1.5 lbs. (0.7 kg)
  • Weight: with cable 19 lbs. (8.5 kg) without cable 17 lbs. (7.6 kg)
  • Shipping Weight: 20 lbs. (9.4 kg)
  • Sound Level: 69 dBA at operator
  • Tools: On-board crevice and upholstery tools, optional dusting brush (part #1094) and clip (part #5352WS) available
  • Approvals: CRI Indoor Air Quality Testing Program
  • Warranty: See full warranty for details.
  • Patents: 5028245, 4955106, 5056175

Parts Diagram:


The Windsor SENSOR series has revolutionized floor care in hotels everywhere. Never before has one vacuum met and exceeded the requirements of hospitality staffs around the world. This Sensor vacuum combines versatility, performance, filtration, durability, and value into one unrivaled package. Call us to learn why Windsor Sensor vacuum owners have stopped buying "disposable" vacuums forever.
