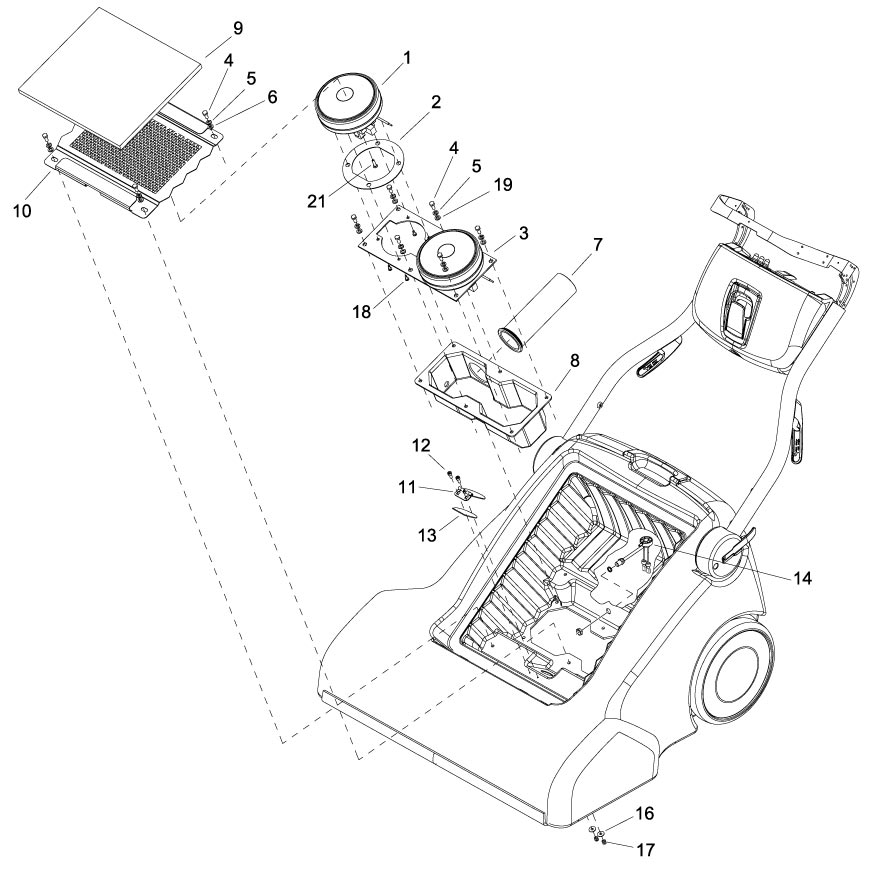

★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★
| Number | Sku | Image | Name |
|---|
| 1A | 86225510 |  |
53817- Windsor Nuwave Vac Motor |
| 2 | 86218310 |  |
Gasket, 5.50 x 3.85 x .06, NuWave |
| 3 | 86223070 |  |
Vac Motor Mount Plate, NuWave |
| 4 | 86293430 |  |
Screw, M6 x 16, NuWave |
| 5 | 86173310 |  |
Spring Lock Washer, M6, NuWave |
| 6 | 86279070 |  |
87056 - Flat Washer, M6, NuWave |
| 7 | 86290450 |  |
Vac Chamber Exhaust Tube, NuWave |
| 8 | 86290120 |  |
Vac Motor Enclosure Box, NuWave |
| 9 | 86217850 |  |
Vac Chamber Filter, NuWave |
| 10 | 86223960 |  |
Vac Chamber Screen, NuWave |
| 11 | 86234760 |  |
27674 - Windsor Extractor Accessory Port Cover |
| 12 | 86293390 |  |
Screw, M5 x .8 x 15, NuWave |
| 13 | 86003780 |  |
35171 - Access Port Cover Gasket Windsor |
| 14 | 86343510 |  |
Vacuum Switch, NuWave |
| 16 | 86173330 |  |
87513 - Washer M5, Windsor Clipper Duo |
| 17 | 86024750 |  |
Hexagon Nylock Nut, M5, NuWave |
| 18 | 86277380 |  |
70835 - Screw, M4.8 x 16, NuWave |
| 19 | 86225730 |  |
87218 - Washer M6 20.50D X 1.67, Lightning 1500 |
| 21 | 86288450 |  |
70689 - Screw Type B M4.8 X 10 HHTF, Windsor Lightning |
