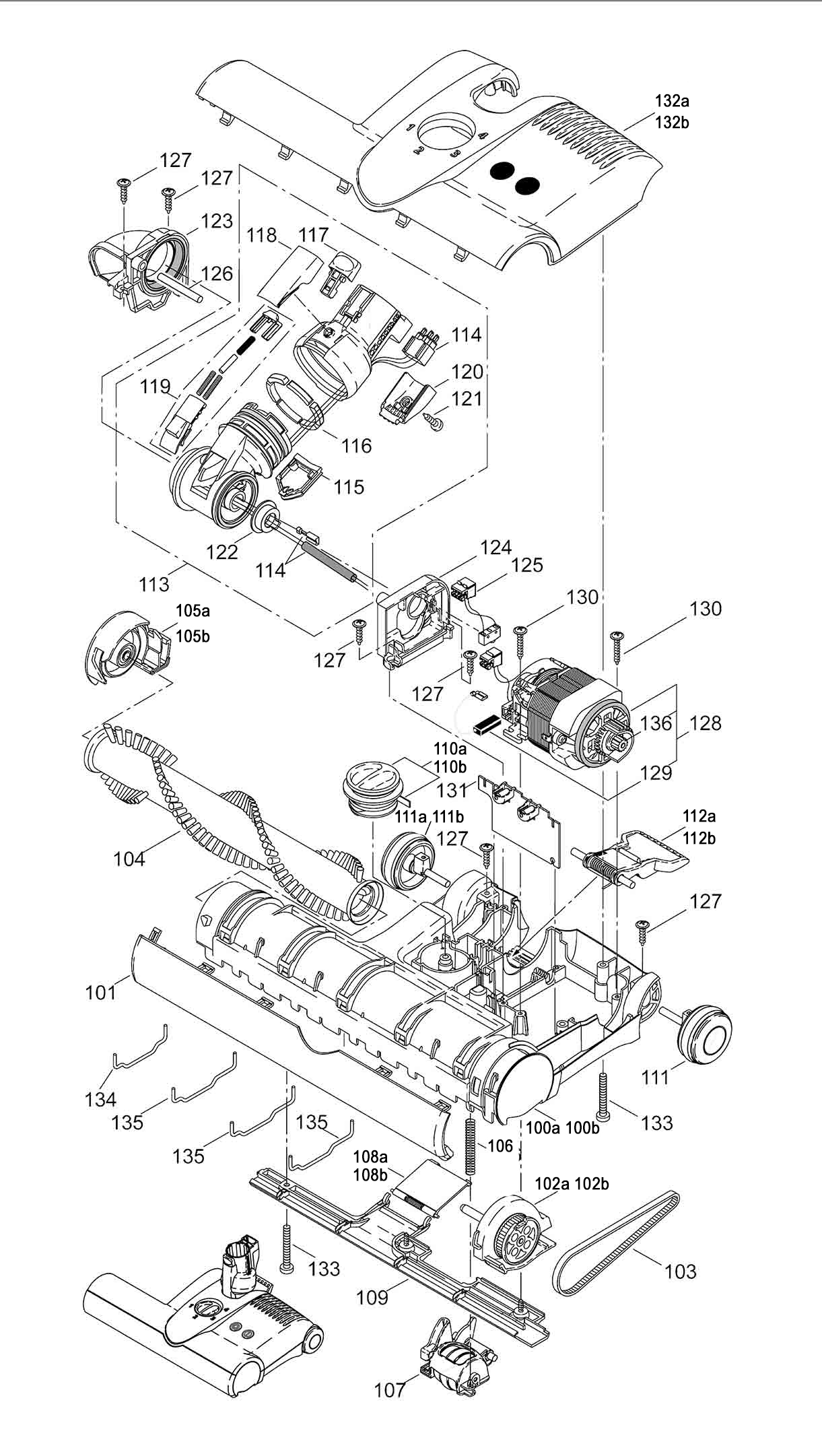

★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★

Windsor Axcess 15" Power Head

Black 15 Inch Chassis #86322350 Chassis, ET2 15" #86324910 Black 15 Inch Bumper #86322360 Dark Gray Left Bearing Block Complete #86322230 Bearing Block LH #86138130 Windsor Flexamatic/Axcess Belt #86138220 Brush Roller SENSOR S15 #86138490 Black Right Hand Bearing Block #86322240 Windsor Flexamatic/Axcess RH Bearing Block #86138120 Spring #86145260 Pile Adjustment Assembly Flexamatic Axcess #86137840 Zinc Yellow Access Door #86406010 Access Door Windsor Axcess #86137710 Zinc Yellow Pile Adjustment Button #86406020 Rear Bottom Plate, CPL 15" DG #86324930 Pile Adjustment Button #86139090 Black Wheel #86322280 Wheel DG #86324830 Zinc Yellow Foot Pedal #86406040 Foot Pedal #86141710 Black Wheel #86322280 Swivel Neck ASM TS DG #86324840 Wiring Swivel Neck #86322300 Cover, TS-Neck DG #86324850 Wiring Swivel Neck #86322300 2950 ER- Segments, TS-Neck Release Button DG #86139080 2952DG- Button Cover TS-Neck DG Swivel Neck Slide DG #86324880 2951DG- Socket Cover TS-Neck DG SCR F 3.9X9.5 DIN 7981 #86144820 2954- Swivel Neck Bearing Swivel Neck Support, RH #86145400 Swivel Neck Support, LH #86145410 Switch Swivel Neck #86350180 Axle #86137930 SCR F3.9X13 DIN 968 #86144810 SCR F3.9X13 DIN 968 #86144810 SCR F3.9X13 DIN 968 #86144810 SCR F3.9X13 DIN 968 #86144810 SCR F3.9X13 DIN 968 #86144810 SCR F3.9X13 DIN 968 #86144810 Brush Motor 12V 200W #86143510 Carbon Brush Set, Brush Motor Axcess #86138390 SCR, F3.9X21 DIN 968 #86144800 SCR, F3.9X21 DIN 968 #86144800 Printed Circuit Board ET2-200W #86144170 15 Inch Power Head Cover #86406050 Power Head Cover ET2 Axcess 15 Inch #86324940 Screw M4 X 30 86147170 Screw M4 X 30 86147170 Sensor Wire Tie 86146790 Sensor Wire Tie Center 86146800 Sensor Wire Tie Center 86146800 Sensor Wire Tie Center 86146800 Brush Motor Pulley #86309030
Windsor Axcess
Bag Housing
Windsor Axcess
12" Power Head

Parts List

Number Sku Image Name Price
100a 86322350 2325SW - Black 15 Inch Chassis Black 15 Inch Chassis $102.00
100b 86324910 2325SW - Black 15 Inch Chassis 15 Inch Chassis $96.90
101 86322360 2303sw - Black 15 Inch Bumper 2303sw - Black 15 Inch Bumper $53.50
102a 86322230 2314gs - Dark Gray Left Bearing Block Complete Dark Gray Left Bearing Block Complete $78.50
102b 86138130 2314gs - Dark Gray Left Bearing Block Complete Left Bearing Block Complete $58.50
103 86138220 2923 - Windsor Flexamatic/Axcess Belt 2923 - Windsor Flexamatic/Axcess Belt $15.50
104 86138490 2838 WI/5814 - Brush Roller SENSOR S15 2838 WI/5814 - Brush Roller SENSOR S15 $52.00
105a 86322240 2313sw - Black Right Hand Bearing Block 2313sw - Black Right Hand Bearing Block $46.50
105b 86138120 2313sw - Black Right Hand Bearing Block Right Hand Bearing Block $29.80
106 86145260 2929- Spring 2929- Spring $5.65
107 86137840 2316DG- Pile Adjustment Assembly Flexamatic Axcess 2316DG- Pile Adjustment Assembly Flexamatic Axcess $36.50
108a 86406010 2909ZG - Zinc Yellow Access Door 2909ZG - Zinc Yellow Access Door $11.80
108b 86137710 2909ZG - Zinc Yellow Access Door Access Door $13.50
109 86324930 2305 DG- Rear Bottom Plate, CPL 15" DG 2305 DG- Rear Bottom Plate, CPL 15" DG $31.50
110a 86406020 2931zg - Zinc Yellow Pile Adjustment Button 2931zg - Zinc Yellow Pile Adjustment Button $14.60
110b 86139090 2931zg - Zinc Yellow Pile Adjustment Button Pile Adjustment Button $15.50
111a 86322280 2306SW - Black Wheel 2306SW - Black Wheel $42.50
111b 86324830 2306SW - Black Wheel 2306SW - Black Wheel $36.80
112a 86406040 2937zg - Zinc Yellow Foot Pedal 2937zg - Zinc Yellow Foot Pedal $20.00
112b 86406040 2937zg - Zinc Yellow Foot Pedal Foot Pedal $20.00
113 86324840 2308DG- Swivel Neck ASM TS DG 2308DG- Swivel Neck ASM TS DG $125.00
114 86322300 Wiring Swivel Neck #86322300 #0877 Wiring Swivel Neck #86322300 $40.00
115 86324850 2947DG- Cover, TS-Neck DG 2947DG- Cover, TS-Neck DG $14.65
116 86144990 2950 ER- Segments, TS-Neck 2950 ER- Segments, TS-Neck $13.65
117 86139080 1737ER- Release Button DG 1737ER- Release Button DG $13.00
118 86324870 2952DG- Button Cover TS-Neck DG 2952DG- Button Cover TS-Neck DG $12.50
119 86324880 2945DG- Swivel Neck Slide DG 2945DG- Swivel Neck Slide DG $18.50
120 86324890 2951DG- Socket Cover TS-Neck DG 2951DG- Socket Cover TS-Neck DG $15.00
121 86144820 01027 ER- SCR F 3.9X9.5 DIN 7981 01027 ER- SCR F 3.9X9.5 DIN 7981 $6.80
122 86138140 2954- Swivel Neck Bearing 2954- Swivel Neck Bearing $9.15
123 86145400 2311- Swivel Neck Support, RH 2311- Swivel Neck Support, RH $28.00
124 86145410 2312- Swivel Neck Support, LH 2312- Swivel Neck Support, LH $26.50
125 86350180 0880- Switch Swivel Neck 0880- Switch Swivel Neck $47.50
126 86137930 2928- Axle 2928- Axle $8.60
127 86144810 01021ER- SCR F3.9X13 DIN 968 01021ER- SCR F3.9X13 DIN 968 $5.40
128 86143500 2973 ER- Brush Motor 12V 175W Brush Motor 12V 200W $190.00
129 86138390 05141S- Carbon Brush Set, Brush Motor Axcess 05141S- Carbon Brush Set, Brush Motor Axcess $33.50
130 86144800 01020 ER- SCR, F3.9X21 DIN 968 01020 ER- SCR, F3.9X21 DIN 968 $6.20
131 86144170 2983 ER- Power Supply ET1 175W Printed Circuit Board ET2-200W #86144170 $88.00
132a 86406050 86406050 Axcess 15 Power Head Cover $70.15
132b 86324940 86324940 Power Head Cover ET2 Axcess 15 Inch $87.20
133 86147170 0176 - Screw M4 X 30 0176 - Screw M4 X 30 $1.99
134 86146800 5402 - Wire Tie Center 5402 - Wire Tie Center $4.55
135 86309030 2319 - Brush Motor Pulley 2319 - Brush Motor Pulley $17.00
