★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★

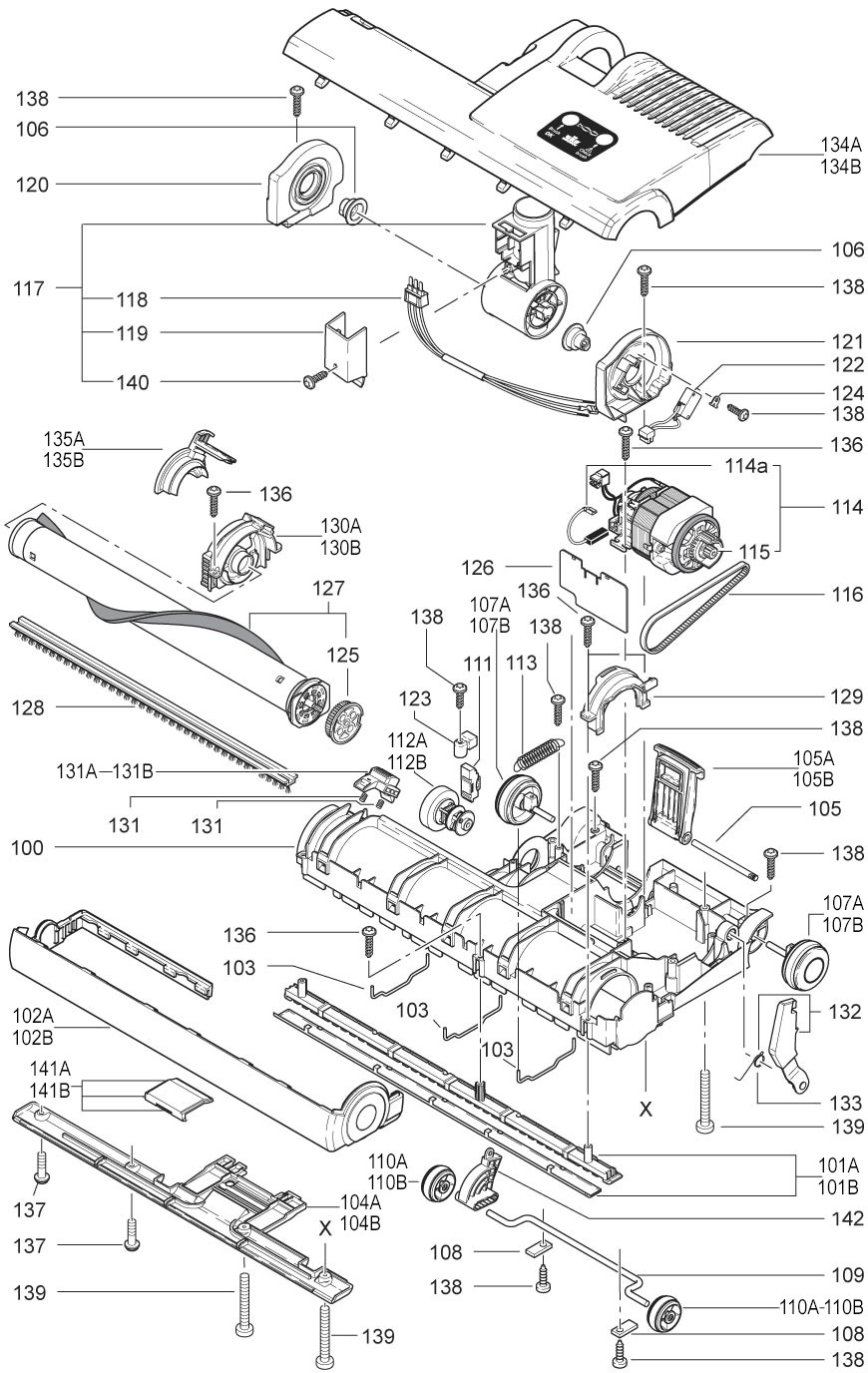

Windsor Versamatic Plus 18" Power Head

18 Inch Black Chassis, Windsor Versamatic 86408130 Gray Black Front Bottom Plate, Windsor Versamatic 86408140 Front Bottom Plate, Windsor Versamatic 18 New Edition #86363470 Black Bumper, Windsor Versamatic 86408150 Bumper, Windsor Versamatic 18 New Edition #86363480 Retaining Bracket, New Edition Versamatic 14 & 18 #86363160 Retaining Bracket, New Edition Versamatic 14 & 18 #86363160 Retaining Bracket, New Edition Versamatic 14 & 18 #86363160 Gray Black Rear Bottom Plate, Windsor Versamatic 86408160 Rear Bottom Plate, Versamatic 18 New Edition #86363490 Foot Pedal Axle, Windsor Versamatic 86378430 Windsor Versamatic Zinc Yellow Foot Pedal 86407870 Foot Pedal, Windsor Versamatic 14 & 18 New Edition #86363180 Swivel Neck Bearing, Versamatic 14 & 18 New Edition #86363190 Swivel Neck Bearing, Versamatic 14 & 18 New Edition #86363190 Black Wheel #86322280 Black Wheel #86322280 Wheel, Versamatic 14 & 18 (New Edition) #86146600 Wheel, Versamatic 14 & 18 (New Edition) #86146600 Axle Clamp, Versamatic 14 & 18 New Editon #86363200 Pile Adjustment Axle for Versamatic 14 & 18 New Edition #86363210 Windsor Versamatic Gray Black Pile Adjustment Wheel 86407880 Windsor Versamatic Gray Black Pile Adjustment Wheel 86407880 Pile Adjustment Wheel for the New Edition Versamatics 86146610 Pile Adjustment Wheel for the New Edition Versamatics 86146610 Thrust Member 86146220 Axle Clamp, Versamatic 14 & 18 New Editon #86363200 Windsor Versamatic Zinc Yellow Adjustment Button 86407890 Adjustment Button for the New Edition Versamatic 14 & 18 #86363220 Spring #86145270 Carbon Brush Set, Brush Motor Axcess #86138390 Brush Motor 120V for the Versamatic 18 New Edition #86363500 Brush Motor Pulley #86309030 Windsor Flexamatic/Axcess Belt #86138220 Swivel Neck Assembly UL-Version #86363680 Wire swivel neck Versamatic Plus new version #86363700 Swivel Neck Cover 370/470, Versamatic Plus 86145840 Swivel Neck Support for the Versamatic 14 & 18 New Edition #86363260 Swivel Neck Support L.H. for the VS14 & 18 New Edition #86363270 Switch Lever for new version Versamatic Plus #86363710 Leaf for the Versamatic 14 & 18 New Edition #86363410 Clamp, Windsor Sensor and Versamatic 86139970 Brush Pulley for the Versamatic 14 & 18 New Edition #86363280 Printed circuit board for new version Versamatic Plus 18 inch #86363740 Brush Assembly Complete, Versamatic 18 New Edition #86372960 18" Brush Strip #86001640 Bearing Block L.H. Versamatic 14 & 18 New Edition #86363310 Windsor Versamatic Black Right Hand Bearing Block 86407900 earing Block R.H. for the Versamatic 14 & 18 New Edition #86363320 Spring for the Versamatic 14 & 18 New Edition #86363340 Spring for the Versamatic 14 & 18 New Edition #86363340 Windsor Versamatic Gray Brush Roller Release 86407910 Brush Roller Release, Versamatic 14 & 18 New Edition #86363330 Support Lever for new version Versamatic Plus #86145450 Spring VSE Return, New Edition Versamatic 14 & 18 #86345580 Basalt Gray Versamatic VS Power Head Cover, Windsor Versamatic 86408180 Power Heads Versamatic 18 New Edition #86363380 Black Side Plate, Windsor Versamatic 86407930 Side Plate for the Versamatic 14 & 18 New Edition #86363360 SCR, 4X20-T20 STS #86144790 SCR, 4X20-T20 STS #86144790 SCR, 4X20-T20 STS #86144790 SCR, 4X20-T20 STS #86144790 Screw M4X12 MM W/Washer 86144850 Screw M4X12 MM W/Washer 86144850 Screw, 4 x14 #86363370 Screw, 4 x14 #86363370 Screw, 4 x14 #86363370 Screw, 4 x14 #86363370 Screw, 4 x14 #86363370 Screw, 4 x14 #86363370 Screw, 4 x14 #86363370 Screw, 4 x14 #86363370 Screw M4 X 30 86147170 Screw M4 X 30 86147170 Screw M4 X 30 86147170 Screw, 4 x14 #86363370 Windsor Screw F 3,9 x 13 DIN 7981 86147030 Zinc Yellow Access Door, Windsor Versamatic 86407940 Access Door for the Versamatic 14 & 18 New Edition #86363390 Lever for the Windsor Versamatic 14 & 18 New Edition #86363400
Windsor Versamatic Plus
Bag Housing
Windsor Versamatic Plus
14" Power Head
Windsor Versamatic Plus
Tools

Parts List

Number Sku Image Name
100 86408130 20202SW - 18 Inch Black Chassis, Windsor Versamatic 18 Inch Chassis, Black $46.00
101a 86408140 20205GS - Gray Black Front Bottom Plate, Windsor Versamatic Front Bottom Plate, Gray $51.50
101b 86408140 Front Bottom Plate, Windsor Versamatic 86408140 Front Bottom Plate $17.50
102a 86363480 Bumper, Windsor Versamatic 18 #86363480 Versamatic 18 Bumper, Gray $69.00
102b 86408150 Black Bumper, Windsor Versamatic 86408150 Bumper, Windsor Versamatic $24.50
103 86363160 Retaining Bracket, Versamatic 14 & 18 86363160 Retaining Bracket $17.00
104a 86363490 Rear Bottom Plate, Versamatic 18 86363490 Rear Bottom Plate $41.00
104b 86408160 Gray Black Rear Bottom Plate, Windsor Versamatic 86408160 Gray Black Rear Bottom Plate $12.20
105 86378430 Foot Pedal Axle, Windsor Versamatic 86378430 Foot Pedal Axle $11.00
105a 86407870 Windsor Versamatic Zinc Yellow Foot Pedal 86407870 Foot Pedal, Yellow $39.00
105b 86363180 Foot Pedal, Windsor Versamatic 14 & 18 86363180 Foot Pedal, Orange $49.50
106 86363190 Swivel Neck Bearing, Versamatic 14 & 18 86363190 Swivel Neck Bearing $18.00
107a 86322280 #86322280 Black Wheel Black Wheel $42.50
107b 86146600 Light Gray Wheel, Versamatic 14 & 18 86146600 Wheel, Light Gray $36.00
108 86363200 Axle Clamp, Versamatic 14 & 18 New Editon #86363200 Axle Clamp $12.10
109 86363210 Pile Adjustment Axle for Versamatic 14 & 18 86363210 Pile Adjustment Axle $32.50
110a 86407880 Windsor Versamatic Gray Black Pile Adjustment Wheel 86407880 Pile Adjustment Wheel, Dark Gray $19.50
110b 86146610 Pile Adjustment Wheel, Light Gray 86146610 Pile Adjustment Wheel, Light Gray $13.00
111 86146220 Thrust Member 86146220 Thrust Member $19.50
112a 86407890 Windsor Versamatic Zinc Yellow Adjustment Button 86407890 Adjustment Button, Yellow $20.00
112b 86363220 Adjustment Button for the New Edition Versamatic 14 & 18 #86363220 Adjustment Button, Gray $24.00
113 86145270 4019 - Spring Versamatic Spring $3.45
114 86363500 Brush Motor 120V Versamatic 18 86363500 Brush Motor 120V $200.00
114a 86138390 Carbon Brush Set, Brush Motor Axcess #86138390 Carbon Brush Set, Brush Motor Axcess $33.50
115 86309030 Brush Motor Pulley 86309030 Brush Motor Pulley $17.00
116 86138220 Windsor Flexamatic/Axcess Belt 86138220 Windsor Flexamatic/Axcess Belt $15.50
117 86363230 Swivel Neck Complete Versamatic 14 & 18 86363230 Swivel Neck Complete $26.00
118 86363250 Wire Complete Set-3 Versamatic 14 & 18 86363250 Wire Complete Set-3 $54.50
119 86145820 Swivel Neck Cover #86145820 Swivel Neck Cover $9.35
120 86363260 Right Hand Swivel Neck Support Versamatic 14 & 18 86363260 Swivel Neck Support, Right Hand $35.50
121 86363270 Left Hand Swivel Neck Support VS Versamatic 14 & 18 86363270 Swivel Neck Support, Left Hand $35.50
122 86143050 Control Lever 86143050 Control Lever 86143050 $1.99
123 86145240 Leaf Spring 86145240 Leaf Spring 86145240 $1.70
124 86139970 Clamp, Windsor Sensor and Versamatic 86139970 Clamp, Versamatic $1.90
125 86363280 Brush Pulley, Versamatic 14 & 18 86363280 Brush Pulley $3.85
126a 86401620 120V Printed Circuit Board, Windsor Versamatic 86401620 120V Printed Circuit Board $79.00
126b 86363290 Printed Circuit Board, Versamatic 14 & 18 New Edition 86363290 Printed Circuit Board $99.50
127 86372960 4099ER - Brush Assembly Complete, Versamatic 18 New Edition Brush Assembly Complete, Versamatic 18 New Edition #86372960 $130.00
128 86001640 Windsor Versamatic 18 inch brush strip 86001640 18" Brush Strip $17.50
129 86363310 Left Hand Bearing Block Versamatic 14 & 18 86363310 Bearing Block, Left Hand $23.50
130a 86407900 Windsor Versamatic Black Right Hand Bearing Block 86407900 Bearing Block, Right Hand, Black $25.50
130b 86363320 Bearing Block, Right Hand, Gray 86363320 Bearing Block, Right Hand, Gray $31.00
131a 86407910 Dark Gray Brush Roller Release 86407910 Brush Roller Release, Dark Gray $15.00
131b 86363330 Brush Roller Release, Light Gray, Windsor Versamatic 86363330 Brush Roller Release, Light Gray $18.00
131 86407910 Versamatic 14 & 18 Spring 86363340 Versamatic Spring $18.00
131 86407910 Versamatic 14 & 18 Spring 86363340 Versamatic Spring $18.00
132 86145440 Support Lever, Versamatic 14 & 18 86145440 Versamatic Support Lever $23.00
133 86345580 Spring VSE Return, Versamatic 14 & 18 86345580 Spring Return $6.45
134a 86408180 20221BG - Basalt Gray Versamatic VS Power Head Cover, Windsor Versamatic 86408180 Power Head Cover, Gray $100.00
134b 86363750 Blue Power Head Cover Versamatic 18 86363750 Power Head Cover, Blue $98.50
135a 86407930 20118EK - Black Side Plate, Windsor Versamatic 86407930 Side Plate, Black $20.00
135b 86363360 Gray Side Plate for the Versamatic 14 & 18 86363360 Side Plate, Gray $24.00
136 86144790 SCR, 4X20-T20 STS 86144790 SCR, 4X20-T20 STS $10.50
137 86144850 Screw M4X12 MM W/Washer 86144850 Screw, M4X12 MM W/Washer $1.79
138 86363370 Screw, 4 x14 #86363370 Screw, 4 x14 $12.50
139 86147170 0176 - Screw M4 X 30 86147170 Screw M4 X 30 $1.99
140 86147030 Screw F 3,9 x 13 DIN 7981 86147030 Screw F 3,9 x 13 DIN 7981 $1.05
141a 86407940 20124EK - Zinc Yellow Access Door, Windsor Versamatic Access Door, Yellow $22.00
141b 86407940 Orange Access Door Versamatic 14 & 18 New Edition #86363390 Access Door, Orange $26.50
142 86363400 20127ER - Lever, Windsor Versamatic 14 & 18 86363400 Lever, Versamatic 14 & 18 $14.00
143 86363410 20129ER - Leaf for the Versmatic 14 & 18 New Edition 20129ER - Leaf for the Versmatic 14 & 18 New Edition $11.50
