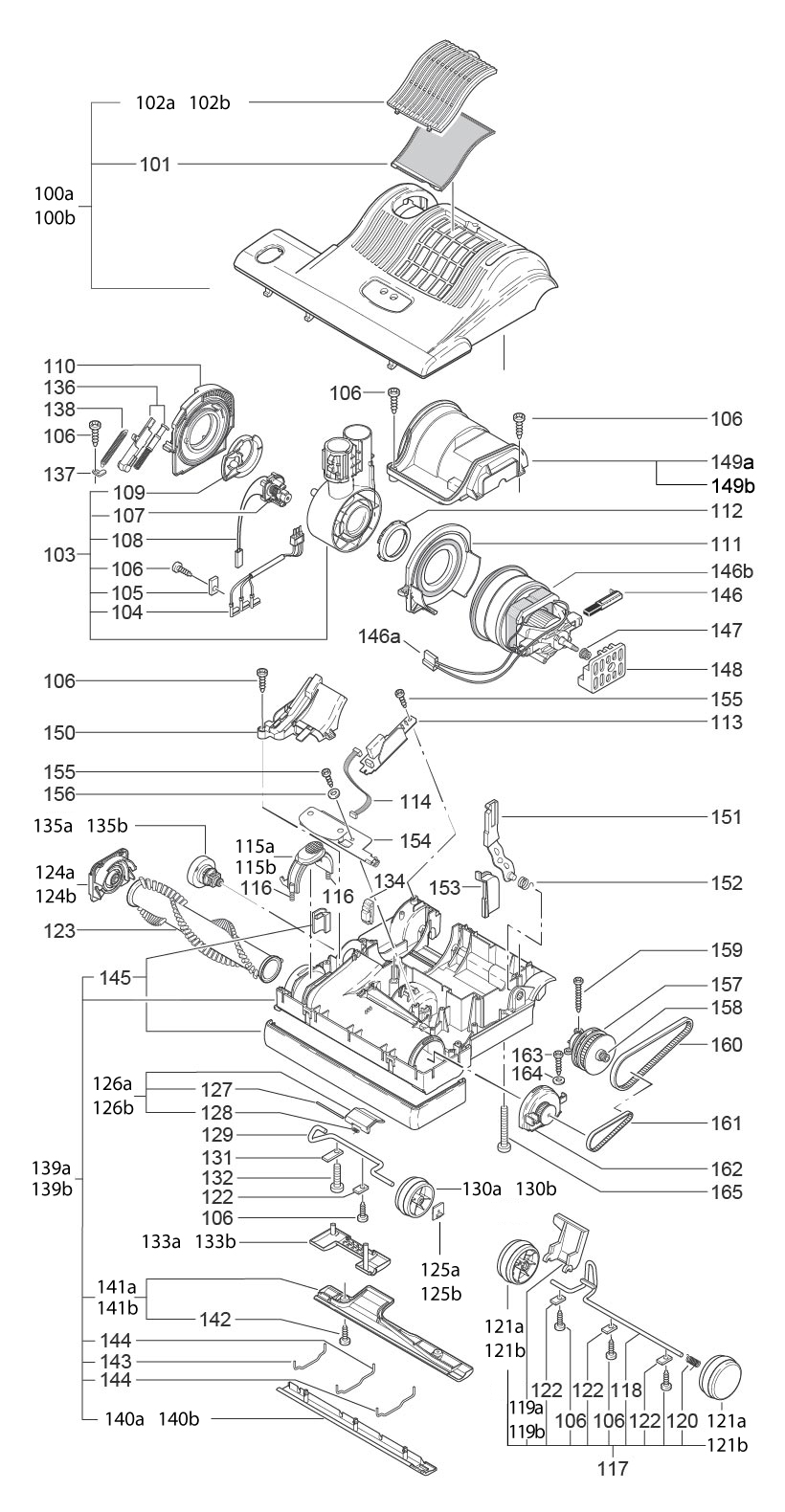

★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★

Windsor Sensor S 15" Power Head

2846 - Windsor SENSOR S Exhaust Filter Swivel Neck Assembly #86408410 Male Contact Holder #86143180 Cable Clamp #86139230 Screw F 3,9 x 13 DIN 7981 #86147030 Bypass Valve #86139100 Internal Cable #86142790 Swivel Neck Bearing R. H. #86145900 Swivel Neck Support R. H. #86145890 Swivel Neck Support L. H. #86146110 Swivel Neck Bearing L. H. #86146130 PCB Power Supply #86143800 Internal Cable, Ribbon # 86142780 Spring #86145290 Spring #86145290 Yellow Axle Assembly #86137980 Windsor Sensor Models #86137990 Axle Spring #86146570 Axle Clamp #86140000 Axle Clamp #86140000 Axle Clamp #86140000 Windsor Sensor Brush Roller 15 inch #86004950 Axle, Access Door SENSOR #86138000 Spring, Access Door #86145330 Pile Adjustment Axle SENSOR #86143850 Axle Clamp, Pile Adjustment Axle #86137920 Screw AMA4 x 16, DIN 7985 86144860 Thrust Member #86146220 Thrust Member #86146230 Clamp #86140010 Spring #86145250 Front Bottom Plate #86138280 Rear Bottom Plate cpl., Dark Gray Rear Bottom Plate cpl., Light Gray Screw, M4X12 MM W/Washer 86144850 Wire Tie #86146790 Wire Tie Center #86146800 Wire Tie Center #86146800 Black Bumper #86319410 Carbon Brush Set Vacuum Motor #86139400 Thermo Switch #86146210 Motor 1000W 120V #86143630 Motor Pulley SENSOR #86143620 Rubber Mounting, Motor #86144710 Gray Black Motor Cover 86408470 Cover, Air Channel #86140610 Support Lever #86145470 Support Lever Spring #86145460 Motor Pulley Cover #86143570 Computer Controller #86140150 Screw 2.9 X 13 #86147160 Screw 2.9 X 13 #86147160 Windsor Washer 3.2 #86147190 Sensor Complete #86145050 Sensor Motor Pulley #86143580 Screw, M3.9 X 25 MM #86147050 Belt 2MR-310-6 #86138240 Belt 219 3M HTDII-6 #86005000 Bearing Block, LH #86138200 Screw C 3,9 x 16 DIN 7981 #86147040 Washer 4,3 DIN 125 86146540 Screw M4 X 30 #86147170 Screw F 3,9 x 13 DIN 7981 #86147030 Screw F 3,9 x 13 DIN 7981 #86147030 Screw F 3,9 x 13 DIN 7981 #86147030 Screw F 3,9 x 13 DIN 7981 #86147030 Screw F 3,9 x 13 DIN 7981 #86147030 Screw F 3,9 x 13 DIN 7981 #86147030 Screw F 3,9 x 13 DIN 7981 #86147030 Axle Clamp #86140000 Power Head Cover Complete, S15 Gray Power Head Cover Complete, S15 Blue Exhaust Filter Cover, Gray Exhaust Filter Cover, Blue Brush Roller Release, Gray Brush Roller Release, Blue Foot Pedal, Yellow Foot Pedal, Orange Sensor Wheel, Black Sensor Wheel, Black Sensor Wheel, Gray Sensor Wheel, Gray Black Bearing Block, Right Hand, Black Black Bearing Block, Right Hand, Gray Rubbing Plate, Black Rubbing Plate, Gray Access Door Complete, Yellow Access Door Complete, Orange Pile Adjustment Wheel, Black Pile Adjustment Wheel, Gray Cover, Sensor S, Black Cover, Sensor S, Gray Pile Adjustment Knob, Yellow Pile Adjustment Knob, White Chassis, S15 Complete, Dark Gray Chassis, SRS15 Complete, Light Gray Front Bottom Plate, S15 Complete Front Bottom Plate, SRS15 Complete Motor Cover, Gray Motor Cover, Blue
Windsor Sensor S
Bag Housing
Windsor Sensor S
12" Power Head

Parts List

Number Sku Image Name
100a 86408480 Power Head Cover S15 cpl., Gray 86408480 Power Head Cover S15 cpl., Gray 86408480 $45.50
100b 86144150 Power Head Cover S15 cpl., Blue 86144150 Power Head Cover S15 cpl., Blue 86144150 $110.00
101 86141400 2846 - Windsor SENSOR S Exhaust Filter Windsor Sensor S Exhaust Filter $14.55
102a 86408400 Sensor S Exhaust Filter Cover 86408400 Sensor S Exhaust Filter Cover $25.00
102b 86141380 Sensor S Exhaust Filter Cover 86141380 Sensor S Exhaust Filter Cover $28.50
103 86408410 86408410 - Light Gray/Zinc Yellow Swivel Neck Assembly Swivel Neck Assembly $93.50
104 86143180 2886 - Male Contact Holder Male Contact Holder $19.00
105 86139230 2494 - Cable Clamp Cable Clamp $1.99
106 86147030 0102 - Screw F 3,9 x 13 DIN 7981 F 3,9 x 13 DIN 7981 Screw $1.05
107 86139100 2835 - Bypass Valve Bypass Valve $71.00
108 86142790 0869 - Bypass Valve Cable Bypass Valve Cable $13.00
109 86145900 2825 - Swivel Neck Bearing R. H. Right Hand Swivel Neck Bearing $31.50
110 86145890 2824 - Swivel Neck Support R. H. Right Hand Swivel Neck Support $31.50
111 86146110 5479 - Swivel Neck Support L. H. Left Hand Swivel Neck Support $18.50
112 86146130 5717 - Swivel Neck Bearing L. H. Left Hand Swivel Neck Bearing $6.95
113 86143800 2890 ER - PCB Power Supply PCB Power Supply $90.00
114 86142780 0864 - Internal Cable, Ribbon Internal Cable Ribbon $11.00
115a 86408420 5713kg - Karcher Gray Brush Roller Release Gray Brush Roller Release $10.95
115b 86138500 Blue Brush Roller Release Brush Roller Release, Blue $8.80
116 86145290 5103 - Spring Brush Roller Release Spring $1.79
117a 86406110 5051zg - Zinc Yellow Axle Assembly Axle Assembly, Yellow $57.10
117b 86137980 Orange Axle Assembly Axle Assembly, Orange $85.50
118 86137990 5053 - Axle, Windsor Sensor Models Axle $26.00
119a 86406120 5059zg - Zinc Yellow Foot Pedal Foot Pedal, Yellow $13.00
119b 86293260 Orange Foot Pedal #86293260 Foot Pedal, Orange $7.15
120 86146570 2010 - Axle Spring Axle Return Spring $2.55
121a 86319360 5819sw - Black Wheel Sensor Vacuum Black Wheel $31.50
121b 86146670 Sensor Wheel, Gray #86146670 Sensor Wheel, Gray $23.00
122 86140000 2014 - Axle Clamp Clamp Connecting Rod $1.45
123 86138490 Brush Roller SENSOR S15 #86138490 Sensor S15 Brush Roller $52.00
124a 86406130 5287bg - Basalt Gray/Black Right Hand Bearing Block Bearing Block, Right Hand, Black/BG $21.00
124b 86138170 5287bg - Basalt Gray/Black Right Hand Bearing Block Bearing Block, Right Hand, Blue/Gray $24.00
125a 86408430 Gray Black Rubbing Plate #86408430 Rubbing Plate, Gray Black $4.15
125b 86144700 Gray Black Rubbing Plate #86408430 Rubbing Plate, Light Gray $5.10
126a 86400150 2868ZG - Access Door Complete, Sensor S2 HEPA Access Door Complete, Yellow $9.10
126b 86137700 2868ZG - Access Door Complete, Sensor S2 HEPA Access Door Complete, Orange $9.25
127 86138000 5303 - Axle, Access Door SENSOR Access Door Axle $1.49
128 86145330 5304 - Spring, Access Door Access Door Spring $3.60
129 86143850 2861 - Pile Ajustment Axle SENSOR Pile Adjustment Axle $20.00
130a 86319380 5174sw - Black Pile Adjustment Wheel Pile Adjustment Wheel, Dark Gray $30.00
130b 86143920 Pile Adjustment Wheel, Light Gray Pile Adjustment Wheel, Light Gray $24.50
131 86137920 2849 - Axle Clamp, Pile Adjustment Axle Pile Adjustment Axle Clamp $5.10
132 86144860 01010 - Screw AMA4 x 16, DIN 7985 AMA4 x 16, DIN 7985 Screw $2.30
133a 86319390 2860sw - Black Cover Windsor Sensor S Cover, Black $13.00
133b 86140620 2860sw - Black Cover Windsor Sensor S Cover, Light Gray $11.50
134 86146220 2833 - Thrust Member Thrust Member Shaft $19.50
135a 86408440 2862zg - Zinc Yellow Pile Adjustment Knob Pile Adjustment Knob, Yellow $5.80
135b 86143860 White Pile Adjustment Knob #86143860 Pile Adjustment Knob, White $14.50
136 86146230 2834 - Thrust Member Thrust Member Base $24.50
137 86140010 2856 - Clamp Clamp $5.10
138 86145250 2867 - Spring Spring $9.25
139a 86408510 2821KA - Black S12 Chassis Complete Chassis S15 Complete, Dark Gray $64.50
139b 86139740 Chassis SRS15, CPL #86139740 Chassis S15 Complete, Light Gray $145.00
140a 86408520 Gray Black Front Bottom Plate SRS 15, CPL #86408520 Front Bottom Plate, Gray Black SRS 15 $8.85
140b 86141760 Front Bottom Plate SRS 15, CPL #86141760 Front Bottom Plate, SRS 15 $25.50
141a 86406240 S15 Rear Bottom Plate cpl., Dark Gray #86406240 S15 Rear Bottom Plate cpl., Dark Gray #86406240 $31.50
141b 86144530 Rear Bottom Plate cpl. SRS15 86144530 Rear Bottom Plate cpl. SRS15 86144530 $20.50
142 86144850 0197 - Screw,M4X12 MM W/Washer M4X12 MM W/Washer Screw $1.79
143 86146790 5401 - Wire Tie Wire Tie $4.55
144 86146800 5402 - Wire Tie Center Wire Tie Center $4.55
145a 86373720 5005sw - S15 Black Bumper S15 Black Bumper $26.50
145b 86138880 5005sw - S15 Black Bumper S15 Black Bumper $22.00
146 86139400 05117S - Carbon Brush Set Vacuum Motor Carbon Brush Set Vacuum Motor $210.00
146a 86146210 05135ST - Thermo Switch 86146210 Thermo Switch $44.00
146b 86143630 5469 - Motor 1000W 120V Motor 1000W 120V $210.00
147 86143620 5462 - Motor Pulley SENSOR Motor Pulley $8.95
148 86144710 5100 - Rubber Mounting, Motor Rubber Mounting, Motor $15.50
149a 86408470 Gray Black Motor Cover 86408470 Black Motor Cover $15.00
149b 86143490 2826GS - Gray Black Motor Cover Blue Motor Cover $15.00
150 86140610 2839 SW - Cover, Air Channel Air Channel Cover $19.50
151 86145470 5129 - Support Lever Support Lever $20.50
152 86145460 5107 - Support Lever Spring Support Lever Spring $1.99
153 86143570 5112 SW - Motor Pulley Cover Motor Pulley Cover $8.45
154 86140150 2881 ER - Computer Controller Computer Controller $98.00
155 86147160 0107 - Screw 2.9 X 13 2.9 X 13 Screw $1.49
156 86147190 0143 - Windsor WASHER 3.2 Windsor Washer 3.2 $1.49
157 86145060 5464 - Sensor Complete Sensor (With Red Ring) #86145060 $88.50
158 86143580 5117 Sensor Motor Pulley Sensor Motor Pulley $12.50
159 86147050 0104 - Screw, M3.9 X 25 MM Screw, M3.9 X 25 MM $1.99
160 86138240 5463 - Belt 2MR-310-6 Belt 2MR-310-6 $21.50
161 86005000 5110 - Belt 219 3M HTDII-6 Belt 219 3M HTDII-6 $19.50
162 86138200 5766 HG - Bearing Block, LH Left Hand Bearing Block $72.00
163 86147040 0103- Screw C 3,9 x 16 DIN 7981 C 3,9 x 16 DIN 7981 Screw $1.99
164 86146540 0140 - Washer 4,3 DIN 125 4,3 DIN 125 Washer $1.49
165 86147170 0176 - Screw M4 X 30 M4 X 30 Screw $1.99
