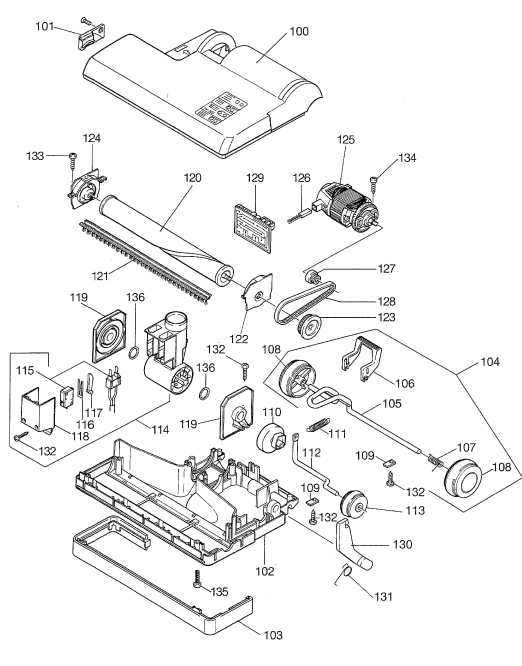

86143220 |
 |
Metal Bottom Plate Versamatic 14 #86143220 |
$11.00 |
| 100 |
86140590 |
 |
2635 WI - Cover Assembly |
$99.00 |
| 101 |
86140530 |
 |
2542- Brush Strip Cover |
$12.00 |
| 102 |
86345590 |
 |
2592 BL - Versamatic 14 inch Chassis |
$118.52 |
| 103 |
86138860 |
 |
2522 hg - Bumper |
$22.50 |
| 104 |
86137910 |
 |
2539 DG - Axle Assembly |
$60.00 |
| 105 |
86137890 |
 |
2525 - Windsor Versamatic 14 Axle |
$39.50 |
| 106 |
86141700 |
 |
2528 OR Foot Pedal |
$7.50 |
| 107 |
86146570 |
 |
2010 - Spring Wheel Return |
$2.55 |
| 108 |
86146590 |
 |
2012 DG - Wheel & End Clip |
$10.00 |
| 109 |
86140000 |
 |
2014 - Clamp Connecting Rod |
$1.45 |
| 110 |
86143820 |
 |
2622 DG - Pile Adjustment Knob |
$13.00 |
| 111 |
86145270 |
 |
4019 - Spring |
$3.45 |
| 112 |
86137880 |
 |
2524 - Pile Adjustment Axle |
$11.50 |
| 113 |
86143890 |
 |
4072 DG - Pile Adjustment Wheel |
$12.00 |
| 114 |
86145800 |
|
2510 HG - Swivel Neck Assembly |
$75.50 |
| 115 |
86146740 |
 |
2541 UL - Wire Swivel Neck 3-Wire |
$38.50 |
| 116 |
86145240 |
 |
2546 - Leaf Spring |
$1.70 |
| 117 |
86143050 |
 |
Control Lever 86143050 |
$1.99 |
| 118 |
86145820 |
 |
2530 HG -Swivel Neck Cover |
$9.35 |
| 119 |
86145420 |
 |
2538 - Swivel Support |
$16.00 |
| 120 |
86138430 |
 |
14 inch Versamatic Brush Roller Assembly #86138430 |
$105.00 |
| 121 |
86002440 |
 |
2046 - Brush strip- Windsor Versamatic 14 |
$13.00 |
| 122 |
86138110 |
 |
2091 - Bearing Block Left Hand |
$26.00 |
| 123 |
86144430 |
 |
2458 - Brush Roller Pulley |
$16.00 |
| 124 |
86138100 |
 |
2047 - Bearing Block Right Hand |
$17.50 |
| 125 |
86352850 |
 |
2241 UL - Brush Motor 120V |
$215.00 |
| 126 |
86139380 |
 |
05095S - Carbon Brush Set |
$46.00 |
| 127 |
86144420 |
 |
2025 - Motor Pulley |
$14.00 |
| 128 |
86147010 |
 |
4024 - Drive Belt |
$13.50 |
| 129 |
86140290 |
 |
2572 ER - Electronic Control PC Board |
$99.50 |
| 130 |
86145440 |
 |
2652HG - Support Lever, Versamatic 14 & 18 New Edition |
$23.00 |
| 131 |
86345580 |
 |
2651 - Spring VSE Return, New Edition Versamatic 14 & 18 |
$6.45 |
| 132 |
86147030 |
 |
0102 - Screw F 3,9 x 13 DIN 7981 |
$1.05 |
| 133 |
86147040 |
 |
0103- Screw C 3,9 x 16 DIN 7981 |
$1.99 |
| 134 |
86144880 |
 |
0174 - Screw, Windsor Sensor and Versamatics |
$1.49 |
| 135 |
86147070 |
 |
Screw AM5 x 30 DIN 7985 86147070 |
$1.49 |
| 136 |
86145190 |
 |
0149 - Washer, Windsor Sensor and Versamatic |
$2.35 |
