★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★

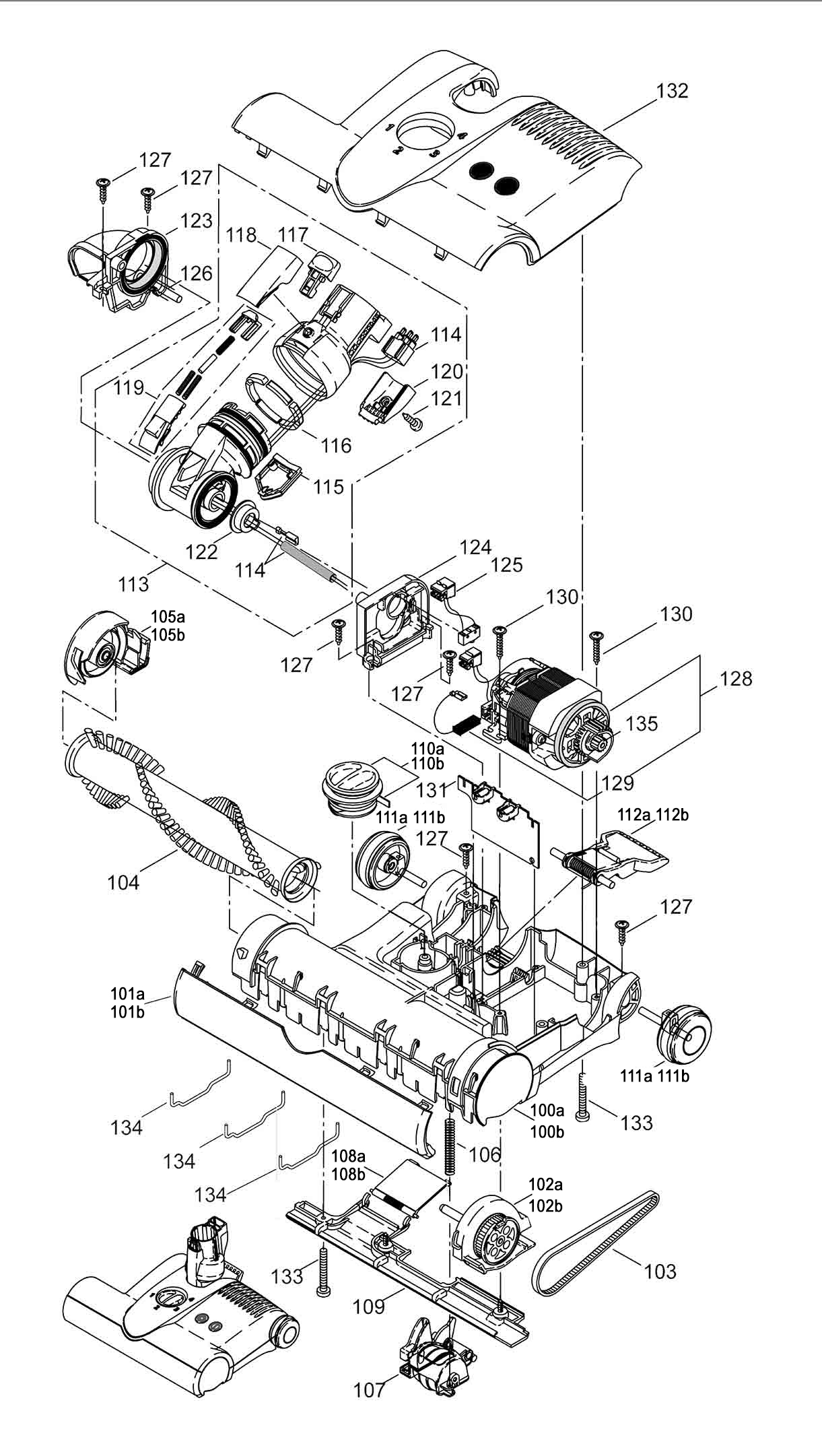

Windsor Axcess 12" Power Head

Black 12 Inch Chassis #86322210 https://www.homeprovacuum.com/index.php?l=product_detail&p=98484389 Black 12 Inch Bumper #86322220 12" Bumper for Axcess 12 and Flexamatic 12 #86138840 Dark Gray Left Bearing Block Complete #86322230 Bearing Block LH #86138130 Windsor Flexamatic/Axcess Belt #86138220 Windsor Sensor Brush Roller 12 inch 86004950 Black Right Hand Bearing Block #86322240 Windsor Flexamatic/Axcess RH Bearing Block #86138120 Spring #86145260 Pile Adjustment Assembly Flexamatic Axcess #86137840 Zinc Yellow Access Door #86406010 Access Door Windsor Axcess #86137710 12 Inch Rear Bottom Plate Complete #86322260 Zinc Yellow Pile Adjustment Button #86406020 Pile Adjustment Button #86139090 Black Wheel #86322280 Wheel DG #86324830 Zinc Yellow Foot Pedal #86406040 Foot Pedal #86141710 Black Wheel #86322280 Wheel DG #86324830 Swivel Neck ASM TS DG #86324840 Wiring Swivel Neck #86322300 Cover, TS-Neck DG #86324850 2950 ER- Segments, TS-Neck Wiring Swivel Neck #86322300 Release Button DG #86139080 2952DG- Button Cover TS-Neck DG Swivel Neck Slide DG #86324880 2951DG- Socket Cover TS-Neck DG SCR F 3.9X9.5 DIN 7981 #86144820 2954- Swivel Neck Bearing Swivel Neck Support, RH #86145400 Swivel Neck Support, LH #86145410 Switch Swivel Neck #86350180 Axle #86137930 SCR F3.9X13 DIN 968 #86144810 SCR F3.9X13 DIN 968 #86144810 SCR F3.9X13 DIN 968 #86144810 SCR F3.9X13 DIN 968 #86144810 SCR F3.9X13 DIN 968 #86144810 SCR F3.9X13 DIN 968 #86144810 SCR F3.9X13 DIN 968 #86144810 Brush Motor 12V 175W #86143500 Carbon Brush Set, Brush Motor Axcess #86138390 SCR, F3.9X21 DIN 968 #86144800 SCR, F3.9X21 DIN 968 #86144800 Power Supply ET1 175W #86144160 Power Head Cover Axcess 12 86407960 Screw M4 X 30 86147170 Screw M4 X 30 86147170 Sensor Wire Tie Center 86146800 Sensor Wire Tie Center 86146800 Sensor Wire Tie Center 86146800 Brush Motor Pulley #86309030
Windsor Axcess
Bag Housing
Windsor Axcess
15" Power Head

Parts List

Number Sku Image Name Price
100a 86322210 2324SW - Black 12 Inch Chassis 2324SW - Black 12 Inch Chassis $92.62
100b 86139640 2324SW - Black 12 Inch Chassis 12 Inch Chassis $87.50
101a 86322220 2302sw - Black 12 Inch Bumper 2302sw - Black 12 Inch Bumper $44.25
101b 86138840 2302sw - Black 12 Inch Bumper 2302sw - Black 12 Inch Bumper $32.30
102a 86322230 2314gs - Dark Gray Left Bearing Block Complete 2314gs - Dark Gray Left Bearing Block Complete $78.50
102b 86138130 2314gs - Dark Gray Left Bearing Block Complete Left Bearing Block Complete $58.50
103 86138220 2923 - Windsor Flexamatic/Axcess Belt 2923 - Windsor Flexamatic/Axcess Belt $15.50
104 86004950 5010WI - Windsor Sensor Brush Roller 12 inch 5010WI - Windsor Sensor Brush Roller 12 inch $35.00
105a 86322240 2313sw - Black Right Hand Bearing Block 2313sw - Black Right Hand Bearing Block $46.50
105b 86322240 2313sw - Black Right Hand Bearing Block Right Hand Bearing Block $29.80
106 86145260 2929- Spring 2929- Spring $5.65
107 86137840 2316DG- Pile Adjustment Assembly Flexamatic Axcess 2316DG- Pile Adjustment Assembly Flexamatic Axcess $36.50
108a 86406010 2909ZG - Zinc Yellow Access Door 2909ZG - Zinc Yellow Access Door $11.80
108b 86137710 2909ZG - Zinc Yellow Access Door 2909ZG - Zinc Yellow Access Door $13.50
109 86322260 2304gs - 12 Inch Rear Bottom Plate Complete 2304gs - 12 Inch Rear Bottom Plate Complete $25.00
110a 86406020 2931zg - Zinc Yellow Pile Adjustment Button 2931zg - Zinc Yellow Pile Adjustment Button $14.60
110b 86139090 2931zg - Zinc Yellow Pile Adjustment Button Pile Adjustment Button $15.50
111a 86322280 2306SW - Black Wheel 2306SW - Black Wheel $42.50
111b 86324830 2306SW - Black Wheel Wheel DG $36.80
112a 86406040 2937zg - Zinc Yellow Foot Pedal 2937zg - Zinc Yellow Foot Pedal $20.00
112b 86141710 2937zg - Zinc Yellow Foot Pedal 2937zg - Zinc Yellow Foot Pedal $20.00
113 86324840 2308DG- Swivel Neck ASM TS DG 2308DG- Swivel Neck ASM TS DG $125.00
114 86322300 Wiring Swivel Neck #86322300 #0877 Wiring Swivel Neck #86322300 $40.00
115 86324850 2947DG- Cover, TS-Neck DG 2947DG- Cover, TS-Neck DG $14.65
116 86144990 2950 ER- Segments, TS-Neck 2950 ER- Segments, TS-Neck $13.65
117 86139080 1737ER- Release Button DG 1737ER- Release Button DG $13.00
118 86324870 2952DG- Button Cover TS-Neck DG 2952DG- Button Cover TS-Neck DG $12.50
119 86324880 2945DG- Swivel Neck Slide DG 2945DG- Swivel Neck Slide DG $18.50
120 86324890 2951DG- Socket Cover TS-Neck DG 2951DG- Socket Cover TS-Neck DG $15.00
121 86144820 01027 ER- SCR F 3.9X9.5 DIN 7981 01027 ER- SCR F 3.9X9.5 DIN 7981 $6.80
122 86138140 2954- Swivel Neck Bearing 2954- Swivel Neck Bearing $9.15
123 86145400 2311- Swivel Neck Support, RH 2311- Swivel Neck Support, RH $28.00
124 86145410 2312- Swivel Neck Support, LH 2312- Swivel Neck Support, LH $26.50
125 86350180 0880- Switch Swivel Neck 0880- Switch Swivel Neck $47.50
126 86137930 2928- Axle 2928- Axle $8.60
127 86144810 01021ER- SCR F3.9X13 DIN 968 01021ER- SCR F3.9X13 DIN 968 $5.40
128 86143500 2973 ER- Brush Motor 12V 175W 2973 ER- Brush Motor 12V 175W $175.00
129 86138390 05141S- Carbon Brush Set, Brush Motor Axcess 05141S- Carbon Brush Set, Brush Motor Axcess $33.50
130 86144800 01020 ER- SCR, F3.9X21 DIN 968 01020 ER- SCR, F3.9X21 DIN 968 $6.20
131 86144160 2983 ER- Power Supply ET1 175W 2983 ER- Power Supply ET1 175W $87.00
132 86407960 2320 HGAX 2320 Axcess 12 Power Head Cover $62.50
133 86147170 0176 - Screw M4 X 30 0176 - Screw M4 X 30 $1.99
134 86146800 5402 - Wire Tie Center 5402 - Wire Tie Center $4.55
135 86309030 2319 - Brush Motor Pulley 2319 - Brush Motor Pulley $17.00
