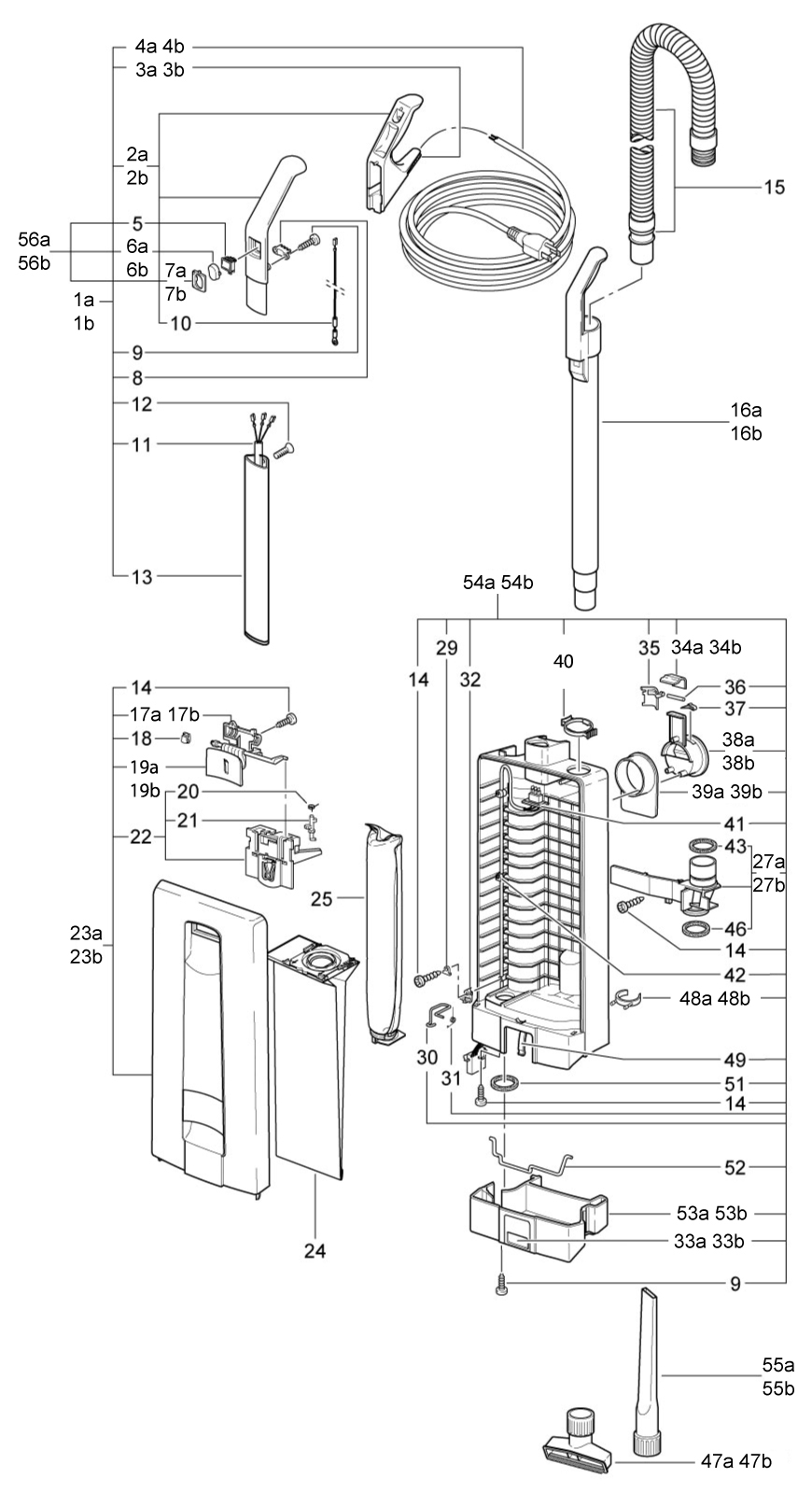

★Note: To use the Parts Diagram simply hover over the number associated with the part you are interested in and click it to navigate to the part's detail page.★

Parts List

Ref Sku Img Name
1 86407970 Sensor Handle Complete Sensor Handle Complete
2 86372980 Sensor Handle Grip Sensor Handle Grip
3 86319140 5359SW - Black Grommet Black Grommet
4 86139130 Yellow Cord Power Cable
5 05113 05113 - Switch, Windsor Sensor Vacuums Sensor Power Switch
6a 86407990 5160ZG - Zinc Yellow Switch Cap Switch Cap, Yellow
6b 86145640 Sensor Power Switch Cap 86145640 Switch Cap, Blue
7 86319180 5161SW - Black Switch Cap Holder Black Switch Cap Holder
8 86139280 Cable Clamp Cable Clamp
9 86147040 Screw C 3,9 x 16 DIN 7981 Screw C 3,9 x 16 DIN 7981
10 86137780 Anitstatic Wire Complete Anitstatic Wire Complete
11 86142310 5256 ER - Handle Cable Sensor Handle Cable
12 86147140 0129 - Screw, M4 x 12 Screw, M4 x 12
13 86142300 Sensor Handle Tube Sensor Handle Tube
14 86147030 0102 - Screw F 3,9 x 13 DIN 7981 Screw F 3,9 x 13 DIN 7981
15 86142650 5040 HG - Windsor Sensor Hose Windsor Sensor Hose
16a 86319200 Black Extension Tube Black Extension Tube
16b 86141540 Gray Extension Tube Gray Extension Tube
17 86140830 Sensor Gray Cover Release Cover
18 86145340 5319 - Bag Holder Spring Bag Holder Spring
19 86408010 Sensor Yellow Cover Release Yellow Cover Release
20 86138050 Sensor Bag Holder Complete Bag Holder Complete
21 86144770 Sensor Safety Catch Safety Catch
22 86144760 Sensor Safety Catch Spring Safety Catch Spring
23a 86408020 Gray Front Cover Complete Gray/Yellow Front Cover Complete
23b 86141860 Sensor Front Cover #86141860 Gray/Blue Front Cover #86141860
24 86000500 5300 - Genuine Windsor Sensor Bags Windsor Sensor Replacement Bags
25 86005220REP 5301 Replacement Windsor Sensor Micro Filter Windsor Sensor Micro Filter Bags
26 86408030 Sensor Gray Internal Cover Internal Cover
27 86139290 5164 - Cable Clamp Cable Clamp
28 86141620 5208 - Filter Safety Catch Filter Safety Catch
29 86145320 5210 - Micro Filter Spring Return Spring
30 86139970 1073 - Clamp, Windsor Sensor and Versamatic Safety Catch Clamp
31 86142290 5099 - Handle Lock Plate Handle Lock Plate
32 86408050 5098kg - Karcher Gray Lock Catch Gray Lock Catch
33 86143060 0187 - Lock Pin 4 x 33.5 Lock Pin 4 x 33.5
34a 86408060 Gray Carrying Handle #86408060 Dark Gray Carrying Handle
34b 86139450 Carrying Handle # 86139450 Light Gray Carrying Handle
35 86145350 5146 - Stop Spring Stop Spring
36a 86408070 5144kg - Karcher Gray Cable Hook Dark Gray Cable Hook
36b 86139260 Cable/Cord Hook #86139260 Light Gray Cable Hook
37 86408080 5424KG - Karcher Gray Retaining Ring Hose Retaining Ring
38a 86319300 Windsor Vacuum Crevice Tool 1092 Dark Gray Crevice Tool
38b 86140870 Windsor Upright Vacuum Crevice Tool 86140860/86140870 Light Gray Crevice Tool
39 86319250 1823sw - Black Dust Bag House Clip Dust Bag House Clip
40 86145280 5084 - Spring For Locking Rod Locking Rod Spring
41 86142880 5255 ER - Internal Cable Internal Cable
42 86139320 5266 - Cable Clamp Cable Clamp
43 86373870 5163 - Seal Internal Cover Seal
44 86144930 5289 - Seal Bag Housing Seal
45 86144910 5163 - Seal Power Head Seal
46 86408090 5085bg - Basalt Gray Dust Bag Housing Bumper Base Dust Bag Housing Bumper Base
47 86408040 5082kg - Karcher Gray Dust Bag Housing Locking Catch Dust Bag Housing Locking Catch
48 86143120 5083 - Locking Rod, Dust Bag Holder Dust Bag Holder Locking Rod
49a 86408100 Sensor 3-Wire Dust Bag Housing #86408100 Dark Gray Dust Bag Housing
49b 86141190 Dust Bag Housing Complete #86141190 Light Gray Dust Bag Housing Complete
50a 86319290 1491sw - Black Upholstery Nozzle Black Upholstery Nozzle
50b 86146290 Dark Gray Upholstery Tool 86146290 Dark Gray Upholstery Tool
51 86408110 0532EK - Black / Zinc Yellow Switch Yellow/Black Switch Kit
